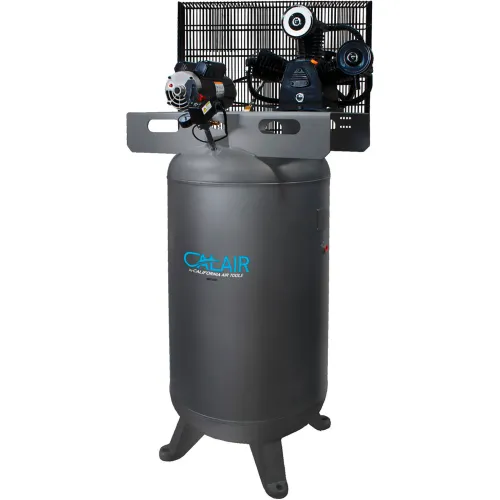

The large 80 gallon ASME Certified steel air tank is just the right size for a shop, warehouse or factory.
Ideal for Air Brushing, Bolting, Brad Nailing, Cutting, Drilling, Grinding, Finish Nailing, Framing Nailing, HVLP Painting, Hobby Nailing, Hobby Painting, Inflation, Roof Nailing, Spraying, Stapling, Trim & Impacting/Wrenching.
Features:
- 1/2" NPT Output Air Port
- NOTE: 1/2" Output Ball Valve & Pressure Regulator NOT included
- Motor Thermal Overload Protector (Trips @135C)
- Working Pressure – 135 – 165 PSI
- 208 Volt (200v-216v) to 230 Volt (215v-250v) / 60 Hertz / Single Phase
- 15.0 CFM @90 PSI, 17.5 CFM @40 PSI
- 24 Amp Draw
- Power Requirements: Dedicated 30 amp outlet
- Plug Type: NEMA L6-30P Receptacle: NEMA L6-30R
- Maximum Operating (ambient) Temperatures: 36 to 108°F
- Time to fill tank from empty to full (155 PSI) – 7 min 50 seconds
- Recovery time from 135 PSI to 165 PSI – 1 min 19 seconds
- Maximum Tank Pressure 165 PSI
- 200 PSI Safety Relief Valve
- 328 lbs (416 lbs on shipping pallet)
- 90 Decibel Noise Level
