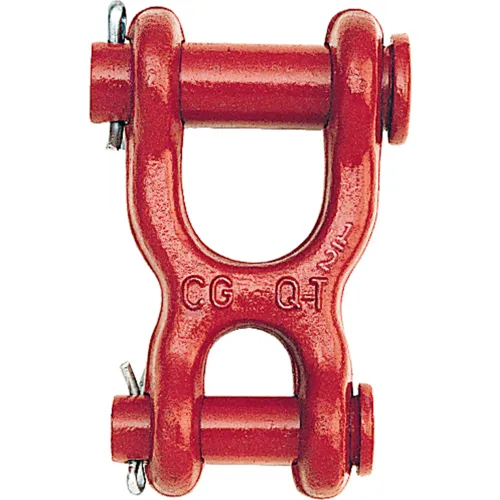

Crosby Chain Double Clevis Link 1/2", 9200 LBS WLL S

Suitable for use with both Grade 80 and Grade 100 chain Individually proof-tested at 2-1/2 times Working Load Limit with certification Locking system that provides for simple assembly and disassembly...no special tools needed 25% stronger than Grade 80 Meets ASTM A-952-96 standards for Grade 100 chain fittings Forged alloy steel, Quenched and Tempered Fatigue rated

Forged alloy steel, Quenched and Tempered, load-rated Eye fitting accepts Crosby A-1337 Lok-A-Loy 10 Connecting Links for connection to chain slings Individually proof-tested to 2-1/2 times the Working Load Limit with certification Product Identification Code (PIC) for material traceability, along with the size and the name Crosby Suitable for use with Grade 100 and Grade 80 chain Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles Large throat opening for fitting over large objects, no latch kit by design Hook can be tip loaded at a reduced Working Load Limit, see ...

Meets the performance requirements of Federal Specifications FF-T-791b, Type 1, Form 1, Class 8, and ASTM F-1145, except for those provisions required of the contractor End fittings are Quenched and Tempered or Normalized, bodies heat treated by normalizing Hot-dip galvanized steel Turnbuckle eyes are forged elongated, by design, to maximize easy attachment in system and minimize stress in the eye--for turnbuckle sizes 1/4" through 2-1/2", a shackle one size smaller can be reeved through eye Forged jaw ends are fitted with bolts and nuts on size 1/4" - 5/8", and pins and cotter on sizes ...

Forged Alloy Steel - Quenched and Tempered. Innovative cradle design allows for 100% efficiency of Grade 100 chain Individually Proof Tested to 2-1/2 times the Working Load Limit with certification Each hook has a Product Identification Code (PIC) for material traceabilit , along with the size and the name Crosby. Suitable for use with Grade 100 and Grade 80 chain. The use of A-1338 Cradle Grab Hook will allow 100 percent of the chain sling capacity. When used to hook back to chain leg to form a choker, the angle of the choke must be 120 degrees or greater. When used as a chain shortener, ...

Forged - Quenched and Tempered, with alloy bolt Working Load Limit permanently shown on shackle Hot-dip galvanized Fatigue rated Satisfies ASME B30.26 requirements Can be furnished proof-tested with certificates (additional charges apply, inquire at time of order)
