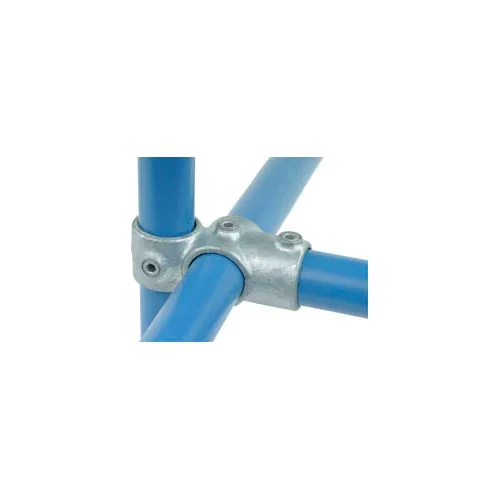

Kee Safety - 46-5 - Combination Socket Tee and Crossover, 3/4" Dia.

Kee Klamp® Fittings Wall Flange Side fixing for guardrailing and balustrading to walls, parapets, steps and ramps. The upright cannot drop through the socket. 7/16" diameter fixing holes. PA Warning: If the upright is required to pass through the fitting by machining out the base stop, the bottom fixing hole will be unusable.

KEE KLAMP® FITTINGS CROSSOVER Designed to give a 90 degree offset crossover joint. Frequently used on safety railing, where, to reduce cost by minimizing the pipe cuts, a continuous horizontal rail is used. It may be also used to give intermediate levels on racks. PA Warning: Pipe cannot be joined within this Kee Lite fitting.

Kee Klamp® Fittings Female Single Swivel Socket Member One part of a combination fitting. The Type F50, in size 4, has only one ear while Type F50, in sizes 5 through 9, has two ears. The distance between the ears on sizes 5 through 9 is 12.70mm or 1/2 inch. 3/8" diameter bolt hole.

Kee Klamp® Fittings Male Corner Swivel Socket Member One part of a Type C52 combination fitting. This fitting can also be used for attaching flat panels to tubular structures. 3/8" diameter bolt hole.

Kee Klamp® Fittings 90° Three Socket Tee Most commonly used as the 90 degree joint between the top rail and an intermediate upright on guardrailing. As there are two socket set screws in the sleeve, this Kee Lite fitting can be used where a join is required in the horizontal tube. As an alternative, it is possible to use a Type L10 fitting in its vertical position in place of the Type L25, using the latter only where a join in the tubing occurs.
