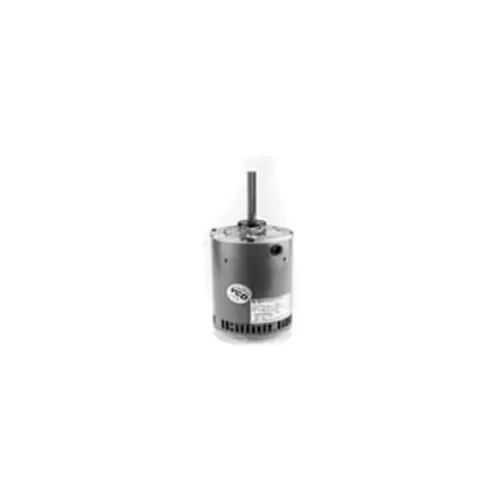

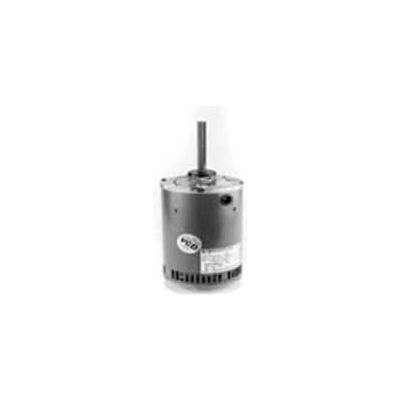

Marathon Motors Condenser Fan Motor, X524, 1 1/2HP, 1200 RPM, 575 V, 3 PH, 56Y FR, OPAO

Picture may not represent actual product

Marathon Motors Condenser Fan Motor, X524, 1 1/2HP, 1200 RPM, 575 V, 3 PH, 56Y FR, OPAO

Item #: WBB871647

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $476.95

Save $23.85 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Marathon Motors Condenser Fan Motor, X503, 1 1/2HP, 1200 RPM, 200-230/460 V, 3 PH, 56Y FR, OPAO

Marathon Motors Condenser Fan Motor, X503, 1 1/2HP, 1200 RPM, 200-230/460 V, 3 PH, 56Y FR, OPAO

Marathon Motors Condenser Fan Motor, X524, 1 1/2HP, 1200 RPM, 575 V, 3 PH, 56Y FR, OPAO

Direct drive condenser fans mounted vertically, shaft up. Models with open brackets should be mounted where they are shielded from rain. These motors need to be mounted within the airflow of the fan for proper cooling.

Product Details

  • Mounting Location Round Belly Band
  • Number of Speeds 2
  • Assembly Required F1 Only
  • Rotation CCW °
  • Ambient Temperature 70 °C
  • Insulation Class H
  • RPM Range 1101-1200 rpm
  • Voltage 575 V
  • Rated RPM 1200
  • Frame 56Y
  • Service Factor 1
  • Horsepower 1 1/2 HP
  • Enclosure Type Open/Drip Proof
  • Is_Motor Yes
  • Duty Continuous AOM
  • Phase 3
  • Enclosure OPAO
  • Brand Marathon Motors
  • Bearing Type Ball
  • Full Load Amps 2.2 FLA
  • Motor RPM 60 Hertz 1200 rpm
  • Thermal Protection Automatic
  • Hertz 60 Hz
  • Manufacturers Part Number C1156

Weights & Dimensions

  • Drive End Bearing Size 6203
  • Opposite End Bearing Size 6203
  • Weight 46 lbs
