Finish Thompson

Model # :WBB1309861

MPN #: DB4P-M613

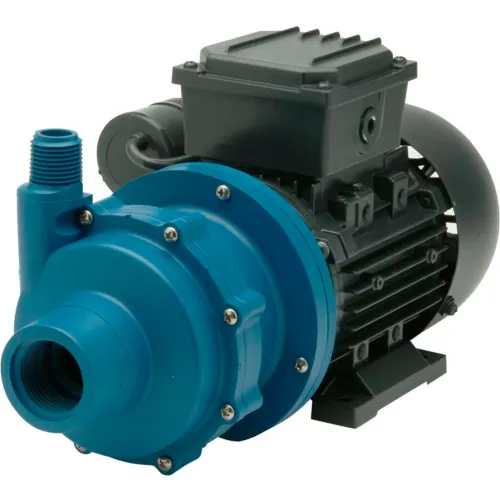

Finish Thompson DB4P-M613 Polypropylene Mag-Drive Pump 1/4HP,115V, 1 Phase,18 GPM

Product Description
Closed coupled, flooded suction, sealless mag-drive design eliminates the need for mechanical seals. Will handle Acids, Alkalis & Plating solutions without leakage. Should not be used with Acetone

PRICE
$475.95

1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length12-7/8 in
Width6-3/16 in
Height6-3/8 in
Max Head29-3/16 ft
Inlet Connection1 in
Discharge Connection Size1/2 in

Product Details

Rotations per Minute3450 rpm
Gallons per Minute18.0 gal/min
Motor TypeTEFC Split Phase
Gallons per Minute @ Bep8 gal/min
Wattage276.0 W
Phase1
Discharge Connection TypeMNPT
Max Exit Pressure12.0 psi
Manufacturers Part NumberDB4P-M613
Temperature of Liquid Pumped180
BrandFinish Thompson
TypeMagnetic Drive Pump
Horsepower1/4 HP
ColorBlue
Amperage2.4 A
Hertz60 Hz
Voltage115 V
Gallons per Hour1080 gal/hr
Inlet Connection TypeFNPT
Housing MaterialPolypropylene

Warranty

Warranty5 yr
