REED Instruments

Model # :WBB3161520

MPN #: R8180

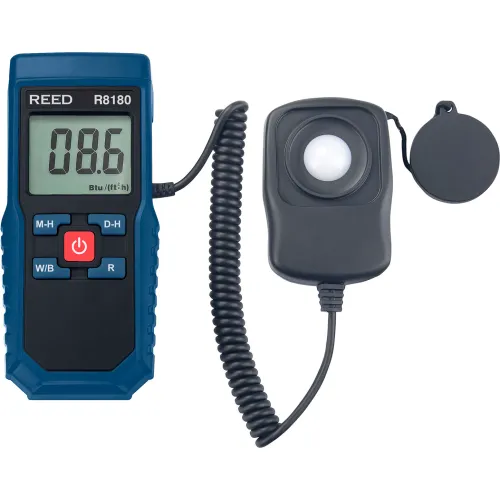

REED Digital Solar Power Meter, 2-3/8"L x 1-1/2"W x 5-3/16"H

Product Description
This lightweight, durable, and easy-to-use solar power meter is essential for maximizing the efficiency of solar panel systems. The digital display provides real-time data on the amount of energy being received by solar panels, making it easy to monitor performance, identify or troubleshoot issues and track progress. The R8180 features a high-precision sensor, data hold, and min/max functions and is ideal for use by solar panel installers and maintenance teams.

Features:
  • Measures the solar power and transmission up to 2000W/m2, 634BTU/(ft2xh)
  • Easy-to-read display with remote sensor technology
  • User-selectable W/m2 or BTU/(ft2xh)
  • Max/Min and Data Hold functions
  • Overrange indicator
  • Low battery indicator and auto shut-off
  • Includes sensor cap, carrying case and battery
  • Accuracy: ±10W/m2; ±3BTU/(ft2xh) or ±5% whichever is greater in sunlight. Additional temperature included error ±0.38W/m2/°C; ±0.12BTU/(ft2xh)/°F (°C) from 77°F (25°C)
  • Power Supply: 9V Battery
  • Operating Temperature: 41 to 104°F (5 to 40°C)
  • Storage Temperature: 14 to 140°F (-10 to 60°C)
  • Operating Humidity Range: 10 to 80%
Applications:
  • Calculation and verification of the heating or heat reduction in windows caused by direct sunlight
  • Solar radiation measurements
  • Solar power research for location of the solar panels or solar water heater
  • Physics and optical laboratories
  • Meteorology
  • Agriculture


PRICE
$209.95

1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length2-3/8
Width1-1/2 in
Height5-3/16 in
Weight0.3
Max Measurement2000 W/M²

Product Details

DigitalYes
TypeSolar Power Meter
ColorBlue
IncludesSensor Cap, Carrying Case, Battery
Graduation0.1, 1
DescriptionDigital Solar Power Meter
Metric MarkingsNo
Manufacturers Part NumberR8180
BrandREED Instruments

Warranty

Warranty1 yr
