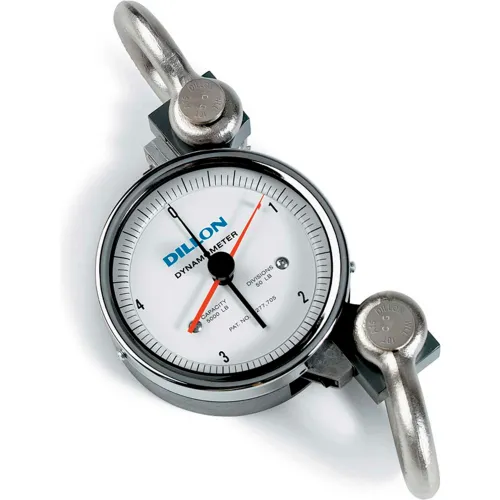

Dillon AP Mechanical Dynamometer with Shackles, 5" Dial, 8,000 lb x 50 lb

Dillon EDX-1T - EDXtreme Dynamometer with Backlight & Shackles, 2,500 lb x 2/.5 lb While the EDXtreme may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDXtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single location. It is the definition of application versatility. The Communicator (hand-held remote - sold separately ) can define the function and manage the operation ...

Originally designed to measure the tension on telephone wires, the AP Dynamometer has proven to have limitless versatility as a tension and weight measuring instrument. It is used for such diverse jobs as suspended weighing, mounting cables for bridges, adjusting tension on guy wires, field testing chain and rope as well as wire. Basically anything requiring precision force or tension measurement. Features: Broadcast range of capacities and resolutions to fit your needs Large safety factor for overload protection and long life No batteries required Dial size choice for the best in ...

The optional communicator is an extremely powerful hand-held remote that can define the function and manage the operation of one or more EDXtreme dynamometers using wired or radio technologies. Through the programmable SOFTKEY interface, one or more communicators can monitor multiple dynamometers within the same airspace. In multiple-link lifting arrays, the communicator can display readings at any or all lift points and calculate the total load Features: RF communication up to 800 ft Communicate with up to 15 EDXtremes Display shows individual EDX's and Total/Sum Intuitive bright display ...

Dillon EDjunior EDjr-1T Dynamometer with Shackles, 2500 lb x 2 lb Repeatability: 0.2% of capacity Proof Load: 150% of capacity Safe Load: 200% Display: 128 x 64 dot-graphic LCD display shows all digits 1.0" high plus annunicators and soft keys Display Update Rate: 2 times per second typical Battery Life: 320 hours typical use with two C-cell alkaline batteries Optional Accessories: Carry Case Includes 2 year Warranty

Popular industry standard shackles insure proper fit Sturdy aircraft-quality aluminum or painted/powder coated alloy steel case on high-capacity models High-resolution dot-matrix LCD display offers large numbers without confusing abbreviations or multipliers Injection molded, thick Lexan panels offer superior impact protection Soft key interface allows easy and intuitive operation and configuration NEMA 4X/IP55 designed for weather and water resistance Battery compartment - easy access without tools Rounded ends reduce weight and prevent binding and snagging with rigging Includes 2 year ...
