IGUS TW-01-30 DryLin-T Polymer-Lined Profile Guide - Size 30

The DryLin® N series offers extremely low profiles in several widths, and is therefore ideal in tight space constraints. Like all DryLin® products the carriages are designed to glide smoothly on anodized aluminum rails without the need for messy lubricants. They are also available in preloaded versions for reduced running clearance. DryLin® N is a particularly low-cost alternative to miniature ball bearing systems, and is more precise and economical when compared to many custom-machined or simple plastic parts. Small mounting height and width Maintenance-free and self-lubricating High ...

An additional DryLin® W solution is a combined rolling and sliding carriage. Because of the defined load direction the required drive force is reduced by a maintenance free roller bearing. This system represents an ideal solution for many hand powered applications under 112 lbs. Ideal for machine tool guards, furniture and aerospace applications. Size (shaft diameter): 10 mm Roller made from plastic Low drive force needed Low cost

The NW 27 series is available in 2 different versions: As a slide with a plain bore, and as a slide with a threaded bore. The lubrication free design is capable of running at high linear speeds. Diagram Dimension Hw is 44.

The smallest size of the DryLin® N range is designed to have minimum dimensions coupled with a high load capacity. In addition, this range is free from lubrication and can run at high speeds.

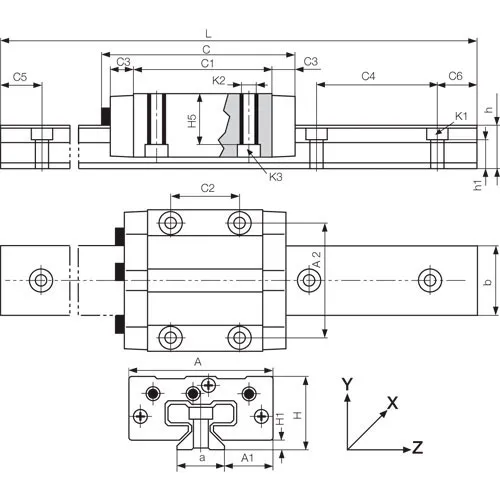

Maintenance-free, dry operation Three sizes Cast zinc chromated carriage Replaceable, wear-resistant iglide® J plastic sliding pads Hard-anodized aluminum rails Small mounting height and width Corrosion Resistant Standard bore pattern symmetrical C5 = C6
