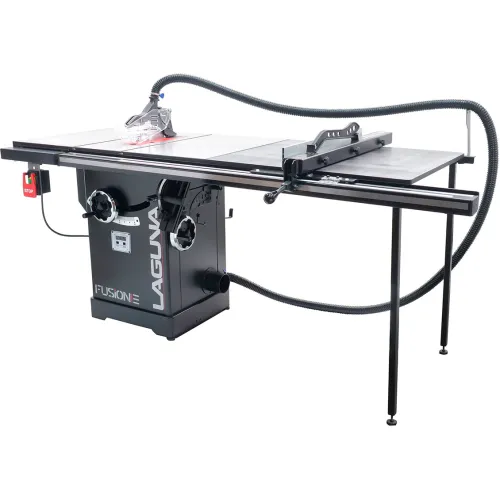

All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position adjustable. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 2 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.
Features:
- 52" Rip Capacity
- 3HP TEFC Motor
- 220V, Single-Phase, 60Hz Power Requirement
- Fusion Dust Collection System
- Industrial Cabinet, Fence & Trunnions
- Included Tools, Tables & Integrated Tool Storage
- Included 10 x 40T Carbide-Tipped Blade
- Industrial 14 Gauge Cabinet
- Accessory Tables (Outfeed & Rip)
- Industrial Fence Rail
- Industrial Fusion Fence
- Premium Electrical & Hardware Components
- Premium Miter Gauge
- Cast Iron Fusion Trunnions
- Cabinet Mounted Arbor
- Cast Iron Table & Wings
- European Hi-Lo Fence
- Premium Zero Clearance Throat Plate
- Fusion Hi-Lo Dust Collection
- Magnetic Contractor Switch
- Quick-Release Blade Guard and Spreader
- Riving Knife Included
- Push Stick Included
- Miter Gauge Included
- Blade Changing Tool Included
- Integrated Tool Storage
- Premium Arbor & Motor Bearing
- Mobility Built Into Cabinet
- Dust Port Size: 4"
- Blade Guard Dust Port Size: 1-1/2"
- Table Saw Type: Cabinet
- Maximum Blade Diameter: 10"
- Arbor Size: 5/8"
- Arbor Speed: 4500 RPM
- Maximum Width Of Dado: 3/4"
- Blade Tilt Direction: Left
- Max Blade Tilt: 45°
- Maximum Depth Of Cut At 90°: 3-1/8"
- Maximum Depth Of Cut At 45°: 2-1/8"
- Max Rip Right Of Blade With Included Fence & Rails: 37"
