For use on pumps designed for fire pump duty and installed per NFPA-20. These Dripproof motors are intended for installation in relatively clean and dry environments. Fire Pumps motors are not recommended for use with variable frequency drives.

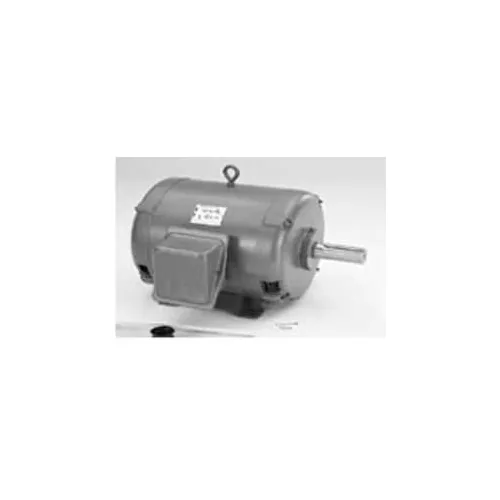

Marathon Motors Fire Pump Motor, U510, 40HP, 230/460V, 1800RPM, 3PH, 324T FR, DP
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$4,349.00
1
1
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 465 lbs |
| Opposite End Bearing Size | 6311 |
| Dimension C | 26 in |
| Drive End Bearing Size | 6312 |
Product Details
| 60 Hertz kW | 30 kW |
| 50 Hertz Horsepower | 30 HP |
| 50 Hertz SF | 1.15 |
| KVA Code | F |
| Motor RPM 50 Hertz | 1500 rpm |
| IP Code | 12 |
| 60 Hertz RPM | 1800 rpm |
| Motor RPM 60 Hertz | 1800 rpm |
| 50 Hertz Voltage | 190/380 V |
| 50 Hertz FLE | 93.00 Percent FLE |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | U510 |
| Enclosure | DP |
| 50 Hertz Full Load Amps | 88/44 FLA |
| Service Factor | 1.15 |
| Bearing Drive End | 6312 |
| Brand | Marathon Motors |
| 50 Hertz Kilowatts | 22.4 kW |
| RPM | 1,800, 1,500 rpm |
| Insulation Class | B |
| Horsepower | 40 HP |
| Orientation | Horizontal |
| Frame | 324T |
| Starting Type | WYE Start Delta Run |
| Enclosure Type | Open/Drip Proof |
| Voltage | 230, 460 V |
| Full Load Efficiency | 93 |
| Full Load Amps | 97/48.5 FLA |
| Duty | Continuous |
| Ambient Temperature | 50 °C |
| RPM Range | 1701-1800 rpm |
Compliance & Certifications
| CSA Certified | Y |
| CE Approved | Y |
| NEMA Design | B |
| UL | UL Listed |
