If the environment is particularly demanding, the Caloritech™ GX heater is recommended (see Forced Air Heaters Heavy Duty - GX, Also available are specially equipped 5 kW barn heaters which have been approved by Manitoba Hydro for use in buildings housing livestock.
Features:

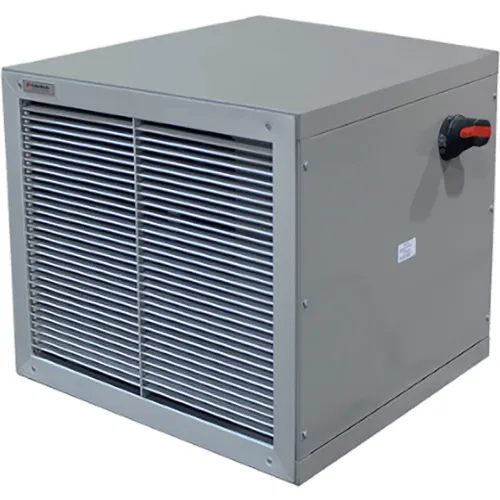

- Forced Air Unit Heater c/w T'stat -600V 1/3Ø 5kW
- Heating Capability (Sq./ft.): Depends on Conditions - Consult Factory
- Electric Fuel Type
- Hardwired
- Indoor Use
- Blower Included
- 2 kW to 30 kW output
- 208V to 600V, 1 or 3 phase
- Field convertible from 1 to 3 phase
- Tubular heating elements
- Adjustable air flow louvres Permanently lubricated motors
- Overheat protection
- 18-gauge steel cabinet
- Epoxy painted (ASA61 Grey)Optional thermostats and controls
- Optional wall bracket
- Motors mounted outside element bundle
- Ceiling mounting bracket supplied
- Temperature: 40-100°F (5-40°C)
- 2 to 10 kW heaters are standard with dual rated motors; 208/240V single phase. Where necessary, transformers are used to provide proper motor voltage
- 15 to 30 kW heaters are standard with single phase full voltage rated motors
- Standard motors have permanently lubricated bearings and built-in thermal overloads
- Totally enclosed ball bearing motors are standard
- Motor RPM - 1550 unless otherwise stated
- Motor HP: 2 to 10 kW: 1/20 HP | 15 to 30 kW: 1/10 HP | Other ratings available, check factory
- Built-in thermostat 41°F to 100°F (5°C to 38°C)
- Fused control circuit
- Manual reset high limit
- Fan switch
- Low voltage relay for remote 24V thermostat
- Epoxy painted fan blade and motor
- Special wattages and voltages
- Special control voltages (standard is 240V)
- Available in special finishes
- Disconnect Switch
- Pilot light
- Energy Management Controller
