- 2 hp motor runs on 220-volt 3-phase power.
- 26-3/4" swing to tackle large pieces of material.
- Drills a maximum capacity of 1.57" with a tapping capacity of up to 1".
- Gear head turns at speeds between 90 and 2425 rpm, so you can select the right speed for almost any application.
- #4 Morse spindle taper feed is electric and completely adjustable.
- Massive column and cast steel base reduce flexing even when you're drilling at full capacity.
- 21-1/4" x 17-1/4" work table with X-pattern T-Slots.
- .7" table-slots allow for a vise or fixture to get a firm hold on the material.
- Includes an electronic power-down feed and a coolant system to prolong the drill's lifetime of use.
- Equipped with achuck and an automatic tool ejectorto adapt to your project quickly and easily.
- Comes standard with a protective shield and ahalogen light for safer drilling in your shop and elsewhere.
- Baileigh covers this gear-driven drill press with a 1-year parts warranty plus our unbeatable lifetime technical support by phone.

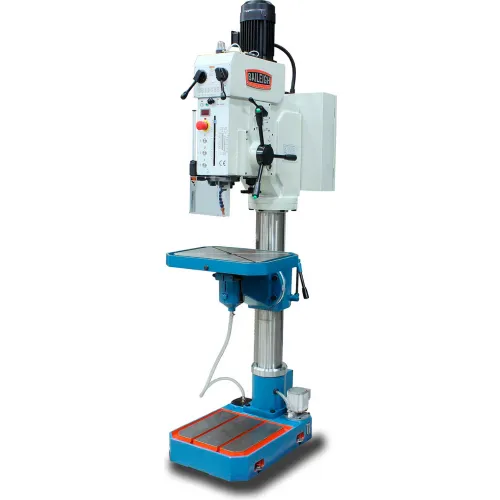

Baileigh Industrial Gear Driven Drill Press -, 2 HP, 3 Phase, 220V, DP-1850G
Write a Review
|
Questions & Answers (0)
Product Description
TheDP-1850Gdrill press harnessesa lot of power for its price. This gear drive drill press can handle thosebigger, tougher jobsat your fabrication or machine shop. Order this geared drill press online today!
PRICE
$15,629.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Size | 24 x 36 x 80 in |
| Spindle Travel | 3-1/2 in |
| Base Work Table | 27 x 19 in |
| Base Dimensions | 27 x 19 in |
| Drills to Center of Circle | 22 in |
| Quill Travel | 7.5 in |
| Quill Diameter | 2.75 in |
| Table Size (L x W) | 21.25 x 17.323 in |
| Swing | 26.75 in |
| T-Slots Number And Size | 2@ 0.5625 in |
| Taper | MT4 |
| Max Spindle Distance to Table | 24 in |
| Spindle Distance To Base | 47 in |
| Distance Spindle To Column | 22 in |
Product Details
| Drilling Capacity Mild Steel | 1-3/4" |
| Motor Voltage | 220 V |
| Phase | 3 |
| Manufacturers Part Number | BA9-1020697 |
| Motor Horsepower | 2 HP |
| Spindle Taper | MT4 |
| Brand | Baileigh Industrial |
| Drilling Capacity Cast Iron | 2" |
| Number of Spindle Speeds | 12 |
| Style | Floor Drill Press |
| Country of Origin | Import |
| Range of Spindle Speeds | 90 to 2425 rpm |
