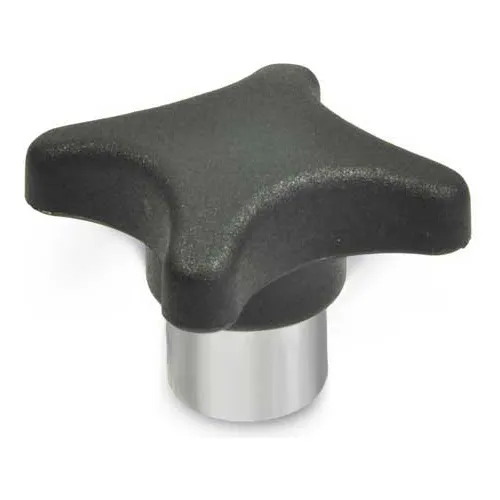

Star knobs GN 6335.2 with all steel hub have important advantages: The face of the hub is exactly square to the bore and is made of steel to prevent edge breakages. Maximum heat resistance of nylon plastic: 110°C (230°F).Nylon plastic star knobs with stainless steel hub, see GN 6335.2-NI.Nylon plastic star knobs with threaded stud, see GN 6335.4-TE. Special inch or metric bores, threads and assembled stud variations available upon request. Other modifications such as cross holes, set screw holes, and stud assemblies also available upon request.
J.W. Winco GN6335.2 Star Knob, 50"(1.97), M8 x 1.25, 18"(.71), 8NCC7/E
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$3.34
1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Dimension H1 | 32mm(1.26) in |
| Dimension T Min | 18mm(.71) in |
| Knob Diameter | 1.97 in |
| Dimension H2 | 18mm(.71) in |
| Dimension D4 | 18mm(.71) in |
| Dimension D1 | 50mm(1.97) in |
Product Details
| Type | Star Hand Knob |
| Series | GN6335.2 |
| Finish | Matte |
| Material | Aluminum |
| D2 Tapped | M8 x 1.25 |
| Manufacturers Part Number | 8NCC7/E |
| Hole Size/Thread | M8 x 1.25 |
| Brand | J.W. Winco |
