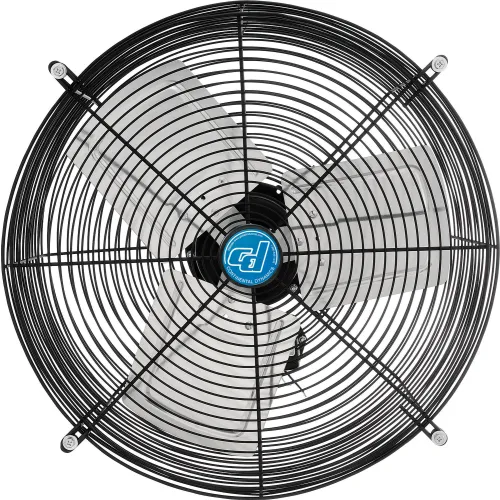

The guard mount exhaust fan is designed for low-pressure exhausting and cooling applications. Steel spiral wire guards enclose 3 aluminum fan blades for safety. Wire guards feature built-in mounting holes for easy installation. The 120V, single phase totally enclosed motor is permanently lubricated for long life. It is UL, cUL listed and conforms to UL507 standard.
Continental Dynamics
Model # :T9F246508
Continental Dynamics® 18" Direct Drive Exhaust Fan, 1 Speed, 5250 CFM, 1/8 HP
|
Questions & Answers (0)
Product Description
PRICE
$189.95
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 20-1/2 in |
| Width | 20-1/2 in |
| Depth | 5-1/8 in |
| Cord Length | Not Included ft |
| Fan Diameter | 18 in |
Product Details
| RPM | 1500 rpm |
| CFM | 5250 CFM |
| Horsepower | 1/8 HP |
| Number of Speeds | 1 |
| Amperage | 1.25 A |
| Drive Type | Direct Drive |
| Max Temperature | 104° F °F |
| Motor Type | Totally Enclosed |
| Mounting Location | Guard or Wall |
| Wattage | 160 W |
| Voltage | 120 V |
| CFM High | 5250 CFM |
| Power Cord Type | Hard Wire |
| Manufacturers Part Number | 246508 |
| Indoor/Outdoor | Indoor |
| Decibels | 70 |
| Brand | Continental Dynamics |
Compliance & Certifications
| Certifications | UL, cUL listed, OSHA, UL507 |
