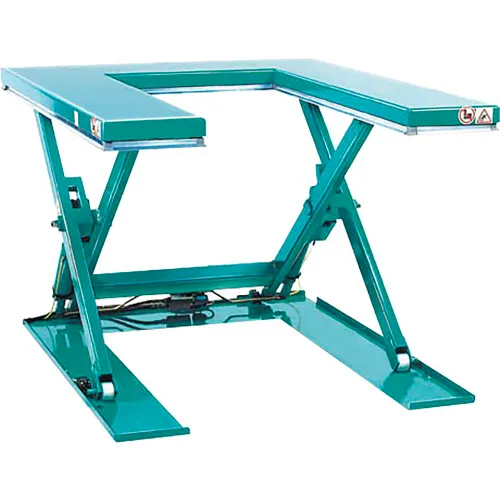

The "U" shaped low-profile table is ideal for handling wire baskets, containers, plastic and wooden open bottom pallets. This design allows loading with either a 21" wide manual or electric pallet truck without the need for a loading ramp.
Installation costs are reduced since the need for a floor pit is eliminated. In addition, any potential tripping hazard that a ramp might pose is removed.
Features:
- Load and unload pallets without the need for a loading ramp
- Meets and exceeds both U.S. (ANSI) and EU safety standards
- Upper platform fitted with safety perimeter which prevents descent on contact
- Low-tension (24V) control box with up-down buttons
- Electric circuit reset button in case the safety perimeter is actuated
- External power pack equipped with a relief valve against overloading
- Compensated flow valve for controlling lowering speed
- External power pack is supplied with 8' long hoses
- Upper limit switch
- Designed for use with a 21" wide pallet jack
- 115 voltage single phase standard
- Single acting cylinders with drainage system
- Check valve to stop the lift table lowering in case of hose burst
- Safety clearance between scissors to prevent trapping during operations
- Mechanical blocks for safe maintenance operations
- Self-lubricating bushings on pivot points
- Removable lifting eye(s) to facilitate installation of the lift table
