- 52" length.
- 10 gauge mild steel maximum capacity.
- Minimum capacity of 24 gauge mild steel.
- 7.5 hp motor runs on 220-volt 3-phase power.
- Industrial-grade hydraulic system is located in the front for easy fluid changes.
- 35 to 47 strokes per minute for speedy production.
- Shearing carriage rides on hardened ways and uses heavy-duty bearings to reduce friction.
- Manually adjustable 23.62" backgauge ensures precise repeatability.
- Heavy duty table with roller bars slides material into the machine more easily.
- Side gauges keep the cut at 90° (if you so choose) without you needing to make a guiding line on the material.
- Switch between 3 modes as needed:
- Jog mode: Inching the blade down to the material.
- Single cycle mode: One cut for one pedal push.
- Automatic cycling mode: Continuously cutting for production runs.
- Adjustable rake angle dial makes it easy to fit your material thickness to minimize burr and put less strain on hydraulics.
- Convenient blade gap adjustment lets you eliminate folding and twisting.
- Comes standard with high carbon chromium blades.
- 2-sided upper blades and 4-sided lower blades can be flipped and resharpened as needed, saving money.
- Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
- Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.
- Shadow line creates a reference line on the material so you know exactly where the cut will be.

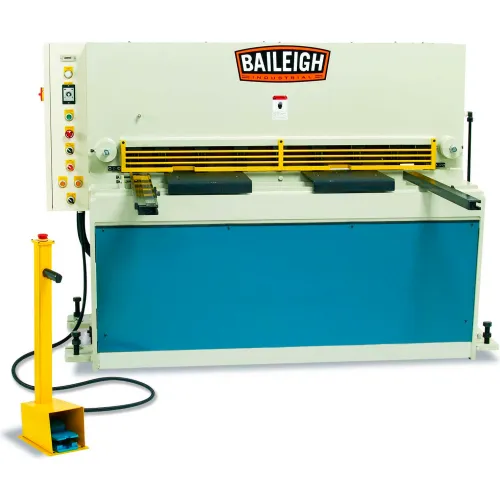

- The SH-5210-HD plate shear is covered by a 1-year parts warranty.
- We stock replacement parts, including blades, in house for fast shipping.
- Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.
Also available in a more economical single-phase version, the SH-5210 sheet metal shear is designed for lighter production.
You can add an optional sheet support system to this model. Please call us for details.
