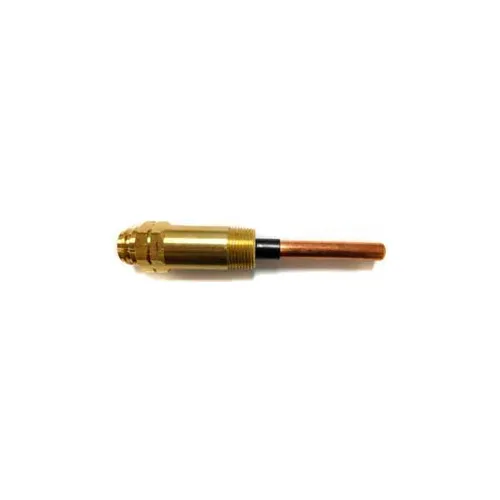

Hydrolevel Electro-Well 3/4" Extended For HydroStat 3200 or 3250

The 210 Series Is A Lock-Up Type Regulator And Compiles With Codes Using This Specification. The 210 Series Has Been Designed For Maximum Control Function In An Easy To Use Package. The Series Is Intended For Use With Gas-Fired Boilers, Steam Generators, Industrial Furnaces, Ovens And Similar High Demand Equipment. The Balanced Valve Design Eliminates The Inlet Pressure Effect Acting On The Valve. Regulating Stability Is Improved And Hunting Tendencies Reduced By The Use Of Dampening Mechanisms In Both The Breather Outlet And Sensing Tube. You Get Precise Regulation Over A Broad Range Of ...

McDonnell & Miller Series 51-2 Mechanical Water Feeder/Low Water Cut-off 51-2, #2 Switch For low pressure steam and hot water boilers larger than 5,000 sq. ft. (465m2) capacity with cold water feed. Quick-change replaceable cartridge valve and strainer. Optional features - No. 2 switch - Manual reset - Float block. Proportional feed action. Model 51 can be field upgraded with a No. 2 switch to add low water cut-off function. Maximum water supply pressure 150 psi (10. 5 kg/cm2). Maximum inlet water temperature 120°F (49°C). Maximum vessel pressure 35 psi (2. 5 kg/cm2). Made in ...

Safgard™ Model 787 Tank Pump High Level Control, 120V Controls pump to maintain desired liquid level. Can be mounted directly in tank or in external equalizing line. Remote probe mounts any distance from control to accomodate virtually any application. High level control maintains level between probes. Energizes pump to remove liquid from tank when the level reaches the upper probe. De-energizes pump when liquid level falls below bottom probe. Includes (1) el1214-sv and (1) EL1214-RSV probes. Made in the USA.

Safgard™ Model FS200 Liquid Flow Switch EPDM seal for superior performance over mechanical bellows. Universal design replaces flow switches by Mcdonnell Miller, Penn, Taco, Potter, Watts and others. Single pole double throw switch for operating signal devices, motors, alarms, metering devices and heating units. Includes four heavy duty stainless steel paddles. Two 7/8" electrical knock-outs for 1/2" conduit. For use on 1" to 6" diameter pipe. 1" Npt pipe connection. Made in the USA. Click For Instructions

McDonnell & Miller Series 551-S Make-Up Water Feeder For applications where water is added to steam separators, receivers, tanks, or other vessels. Proportional feed action. Quick-change replaceable cartridge valve and strainer. Optional features - Float Block. Maximum water supply pressure 75 psi (5. 3 kg/cm2). Maximum inlet water temperature 120°F (49°C). Maximum vessel pressure 25 psi (1. 8 kg/cm2). Made in the USA .
