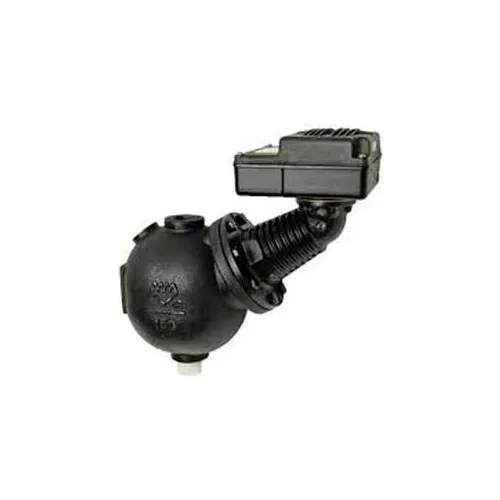

McDonnell & Miller Series 150S Low Water Cut-Off/Pump Controller 150S-MD Maximum Differential

McDonnell & Miller Series 51-2 Mechanical Water Feeder/Low Water Cut-off 51-2, #2 Switch For low pressure steam and hot water boilers larger than 5,000 sq. ft. (465m2) capacity with cold water feed. Quick-change replaceable cartridge valve and strainer. Optional features - No. 2 switch - Manual reset - Float block. Proportional feed action. Model 51 can be field upgraded with a No. 2 switch to add low water cut-off function. Maximum water supply pressure 150 psi (10. 5 kg/cm2). Maximum inlet water temperature 120°F (49°C). Maximum vessel pressure 35 psi (2. 5 kg/cm2). Made in ...

Safguard 450 Series Low Water Cut-Off W/Remote Mount Probe, 120V Burner circuit contacts open after 15 second delay in a low water condition. Delay prevents short cycling caused by momentary fluctuations in the boiler water level. Automatically reactivates burner circuit 30 seconds after water reaches the probe, allowing optional water feeder to raise water level above the probe. Made in the USA . Click for Instructions

Safgard™ 500 Series 24V Gas Hot Water Low Water Cut-off Hydrolevel low water cut-off electronically monitor the water level in low pressure steam boilers. The probe sensor mounts directly in the boiler at or above the lowest safe water level. The control allows the burner to operate normally as long as the water level remains in contact with the probe. Made in the USA . Click for Instructions

Safgard™ Model FS200 Liquid Flow Switch EPDM seal for superior performance over mechanical bellows. Universal design replaces flow switches by Mcdonnell Miller, Penn, Taco, Potter, Watts and others. Single pole double throw switch for operating signal devices, motors, alarms, metering devices and heating units. Includes four heavy duty stainless steel paddles. Two 7/8" electrical knock-outs for 1/2" conduit. For use on 1" to 6" diameter pipe. 1" Npt pipe connection. Made in the USA. Click For Instructions

For boiler receiver tanks. Float operated. Proportional feed action. Soft seat provides positive seal. Seal between float chamber and valve chamber is not a positive seal. Maximum water supply pressure 100 psi (7 kg/cm2). Maximum inlet water temperature 120°F (49°C). Maximum vessel pressure 35 psi (2. 5 kg/cm2). Made in the USA .
