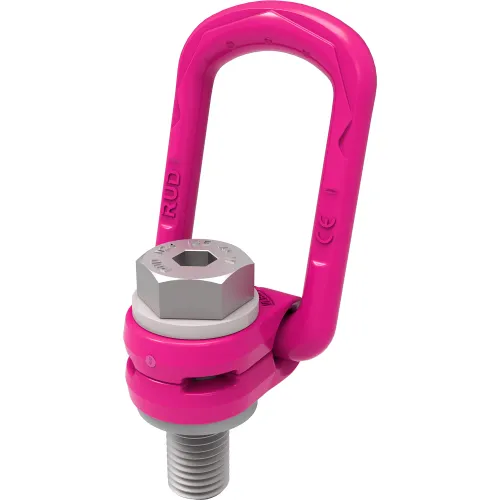

RUD Hoist Ring, 180 Pivot, 44,090 lb. Load Capacity, Pink, Steel, M48 Bolt
Write a Review
|
Questions & Answers (0)
Product Description
VLBG-Plus with ICE-Bolt lifting points pivots 360 degrees. Suspension ring pivots 180 degrees. Optimal WLL with captive but exchangeable ICE-Bolt with special corrosion protection. Clear marking at the bolt head: RUD, ICE, thread size, batch number and class of strength. Clamping spring works as a noise reduction and holds the suspension ring in the requested position. Clear marking of the minimum WLL for all loading directions. Available as Metric or UNC thread. Variable bolt lengths available for tapped or through holes. Quick and easy installation with just one bolt connection. Assembly with flat/ring wrench or allen key possible. Maximum operation temperature range WITHOUT reduction of WLL -40 degrees to 100 degrees Celsius. Maximum operation temperature WITH reduction of WLL to 350 degree Celsius.
PRICE
$1,159.00
1
1
Ships in 4 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 14-5/16 in |
| Width | 9-3/8 in |
| Height | 6-13/16 in |
| Weight Capacity | 44090 |
| Weight | 11.6 kg lbs |
| Dimension T | 222 in |
| Dimension K | 130 |
| Dimension L1 | 160 in |
| Dimension A | 95 |
| Dimension B | 156 |
| Diameter | M 48 (x5) |
| Dimension I | 230 in |
| Dimension D | 95 |
| Dimension E | 105 |
| Dimension F | 36 |
| Dimension C | 100 in |
| Bail Opening | 4.125 x 3.9375 in |
| Dimension H | 73 |
| Dimension S | -- |
| Dimension M | M48 |
| Bolt Size | M48 in |
| Dimension G | 87 in |
| Dimension N | 100 |
| Working Load Limit | 44090 lbs |
Product Details
| Assembly Required | No |
| Centring | -- |
| Material | Steel |
| Manufacturers Part Number | 7982967 |
| Brand | RUD |
| Color | Pink |
| Hook Type | Bolt on |
| Package Quantity | 1 |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | MD 2006/42/EC |
