Great addition as a supplementary or primary heat source to quickly heat enclosed spaces without taking up any floor space. The list of ideal spaces includes garages, stores, maintenance rooms, basements, public buildings, factories, service stations, stairwells, power stations, mechanical rooms, stock rooms and workshops. This heater can be mounted vertically or horizontally on to a ceiling using threaded mounting rods and requires four 5/16"-18 thread size rods (sold separately) to fit in to the threaded holes on the heater with at least 7.5" length and secured in place using lock nuts. This 650 CFM forced air unit heater with advanced pull-through air flow design draws air across heating element to quickly create hot air that is evenly distributed into a room to reach desired temperature levels. In addition, louvers adjust up and down for even greater control of throw direction. The unit can provide up to 34,100 BTU or 10,000 Watts of heat. Easy to use built-in turn dial thermostat goes from Min position all the way up to Max and can be set at desired comfort level to cycle on and off automatically. It is constructed from cold rolled steel for extra toughness and durability. The unit comes equipped with thermal cut-off protection, a safety feature that will automatically turn the heater off if overheating occurs. This 480 Volt heater is a three-phase operation. Easy to install and quick access to control box and wiring makes it easy to service. 1 Year Limited Warranty.
Weights & Dimensions
- Width 19 in
- Length 8-1/2 in
- Clearance to Combustibles Top 12 in
- Height 21-7/16 in
- Min Clearance to Combustibles 36 in
- Clearance to Combustibles Side 24 in
- Bus Wire Gauge 10 AWG
- Min Mounting Height 6 ft
- Weight 41 lbs
Product Details
- Kilowatts 10 kW
- Discharge Horizontal or Vertical
- Amps High 12 A
- Material Steel
- Plug Type Hardwired
- Voltage 480 V
- BTU High 34100
- CFM High 650 CFM
- Phase 3
- Watts High 10000 W
- Max Exposure Temperature 149 @ Ambient Temp. 77
- Brand Global Industrial
- Manufacturers Part Number 246103
- Features High Temperature Thermal Cut-Off
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications cULus
⚌
Photo/Video Gallery
Customer Review
Product Q & A
There are no questions for this product.
Accessories
Warranty
This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.

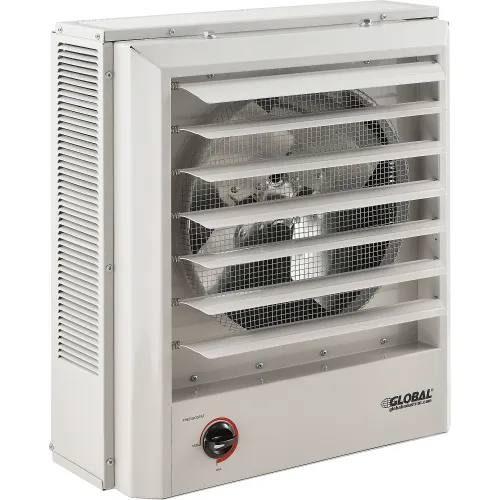

Global Industrial® Unit Heater, Horizontal or Vertical Downflow, 10KW, 480V, 3 Phase
