Fantech Inline Rectangular 16x8" Duct Fan FRD 16-8, 115V, 560 CFM

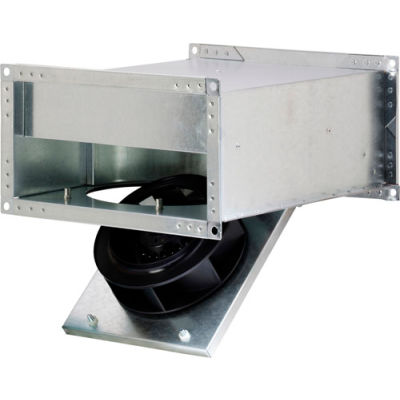

The FRD Series centrifugal type exhaust/supply fans are specifically designed for large ventilation needs where space is at a premium, such as hospitals, schools, or office buildings. System balancing is easy - simple speed adjustment equalizes all vents to compensate for hot or cold spots. The compact housing design of the FRD Series allows for installation directly within rectangular ductwork (ranging from 12"x 6" ducts to 24"x14" ducts), without the need for large elbows or transitional sections. FRD Series fans are simple to install; no extra materials are required. Simply mount the fan at any angle in any point in the ductwork. The motor is mounted on a hinged door - just swing the door out for easy access to the motor and wiring connections.

Features:
  • Hinged door for service access
  • Terminal box with prewired electrical strip
  • 100% speed controllable
  • Airstream temperatures of up to 140° F
  • Three-year warranty
  • UL Listed and AMCA Certified

Product Specifications

  • AMPS1.19
  • BRANDFantech®
  • CERTIFICATIONSAMCA Air, AMCA Sound, cULus
  • CFM HIGH540
  • COLOR FINISHSilver
  • CONSTRUCTIONGalvanized Steel
  • DESCRIPTIONInline Rectangular 16x8" Duct Fan
  • DUCT SIZE INCHES16 x 8
  • FOR USE WITHRPE10, WC15
  • HEIGHT INCHES7-3/4
  • HERTZ (HZ)60
  • LENGTH INCHES19-3/4
  • LIMITED WARRANTY YEARS3
  • MANUFACTURERS PART NUMBERFRD 16-8
  • MODEL40031
  • PHASE1
  • RPM HIGH3,087
  • SONES13
  • SPEED CONTROLLABLEY
  • SPEEDSVariable
  • VOLTAGE115
  • WATTS125
  • WEIGHT LBS30
  • WIDTH INCHES15-3/4
Customer Review

Not Yet Reviewed

Product Q & A

There are 1 questions and 1 answer for this product.

  • Is there a noise (sone) rating on this blower?

    Question Asked By: Kim Nevin, October 06, 2019

    Answer This Question

    Question Answered By:

    • Product Expert, October 07, 2019

      Hello, the sone rating is 13. Thank you for your question.
