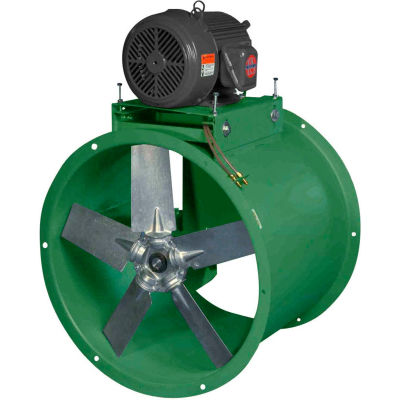

Canarm 34" Single Phase Belt Drive Tube Axial Duct Fan WTA34T10150 1-1/2HP, 15100 CFM

Rollover image to zoom in

Click image to enlarge

See all 82 items in product family

Canarm 34" Single Phase Belt Drive Tube Axial Duct Fan WTA34T10150 1-1/2HP, 15100 CFM

Item #: WBB1659539

Sold By: globalindustrial.com

Usually ships in 25 to 28 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $ 2,899.00
Product Information
Customer Review
Product Q&A
Canarm 34" Single Phase Belt Drive Tube Axial Duct Fan WTA34T10150 1-1/2HP, 15100 CFM

Designed for duct connected applications such as paint booth exhaust, air make-up fans or general exhaust. The WTA series includes an adjustable motor base, heavy duty pillow block ball bearings with moisture displacement collars, extended lube lines with external grease fittings. TEFC motors are standard and models up to 42" come with cast aluminum blades. 48", 54" and 60" models have polypropylene reinforced fiberglass blades. WTA models are ideally suited for applications involving moisture laden air with a maximum temperature of 200F.

Features:
  • Adjustable motor base
  • Heavy duty pillow block bearings w/ moisture displacement collars
  • Cast aluminum blades

Product Specifications

    • BLADE QUANTITY6
    • BLOWER TYPETube Axial Duct Fan
    • BRANDCanarm
    • CFM HIGH15,100
    • CFM LOW4,800
    • CLASSD
    • COLORGreen
    • CONSTRUCTIONHeavy guage welded steel
    • DECIBELS (DBA)61
    • DEPTH INCHES27
    • DESCRIPTION34" Single Phase Belt Drive Tube Axial Duct Fan
    • FAN DIAMETER INCHES34
    • FINISHPowder Coat
    • HEIGHT INCHES37-3/8
    • HERTZ (HZ)60
    • HORSEPOWER1-1/2
    • INSIDE DIMENSIONS INCHES34-3/8
    • MANUFACTURER PART NUMBERWTA34T10150
    • MANUFACTURER WARRANTY1 Year
    • MODELWTA
    • MOUNTING LOCATIONInline Duct
    • OVERALL HEIGHT INCHES42
    • OVERALL WIDTH INCHES42
    • PHASE1
    • RPM HIGH895
    • TYPEFor Moisture Laden Air W/ A Max. Temp. Of 200F
    • VOLTAGE115
    • WIDTH INCHES37-3/8
