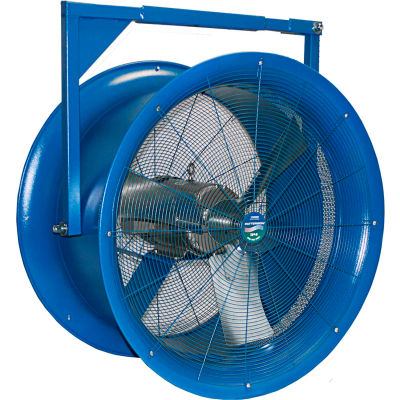

Patterson H34B High Velocity Fan, 34", 230/460V, 3 PH w/ Yoke Mount

Patterson H34B High Velocity Fan, 34", 230/460V, 3 PH w/ Yoke Mount

Item #: WBB1922665

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $2,700.00

$450.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

This is an industrial product, it was not designed for and is not intended for residential use. Orders for residential use will not be accepted.

Patterson H34B High Velocity Fan, 34", 230/460V, 3 PH w/ Yoke Mount

Patterson's 34" high velocity fan has a 3HP motor, moves air 230' indoors, used for general air circulation, industrial use only. Built for performance, superior distance of air throw and durability.

Key Attributes of the HV Series:
  • Direct Drive, Maintenance-Free Motor with Sealed Bearings (Totally Enclosed)
  • Side-Vented Barrel Design Promotes Optimum Air Flow
  • Fan Blades Engineered for Maximum Air Velocity and Efficiently Smooth Operation
  • Powder Coated, Corrosion Resistant OSHA Compliant Recessed Finger Guards
  • Deep Venturi Inlet/ Outlet Design of Barrel Creates Even Column of Non-disturbed Air Flow


Product Specifications

  • BRANDPatterson Fan
  • ASSEMBLYAssembled
  • CFM HIGH17,000
  • WIDTH INCHES43-1/2
  • HEIGHT INCHES43-1/2
  • DEPTH INCHES25-1/2
  • FAN DIAMETER INCHES34
  • WEIGHT LBS228.6
  • MANUFACTURER'S PART NUMBERH34B
  • COLOR FINISHBlue
  • CONSTRUCTIONSteel
  • HORSEPOWER3
  • FAN TYPEIndustrial
  • RPM HIGH 1,200
  • WATTS2,116
  • PHASE3
  • AMPS9.2
  • HERTZ (HZ)60
  • VOLTAGE230 / 460
  • SPEEDS1
  • MOTOR TYPETotally Enclosed Air Over (TEAO)
  • DRIVE TYPEDirect Drive
  • DECIBELS (DBA)88
  • OSCILLATING/NON-OSCILLATINGNon-Oscillating
  • LIMITED WARRANTY YEARS2
  • APPROVALS OR CERTIFICATIONSOSHA Compliant
  • DESCRIPTIONIndustrial Drum Fan
  • INCLUDESYoke Mount Bracket
  • MOUNT TYPEWall / Column / Pedestal
  • POWER CORD TYPEN/A
  • POWER CORD LENGTH FEETN/A
  • MAX AMBIENT TEMPERATURE °F104
  • BLADE TYPEGalvanized Aluminum
  • BLADE QUANTITY4
  • PACKAGE QUANTITY1
  • DISTANCE AIR THROW FEET230'
  • MODELB1922665
  • COOLING SQ. FT.17,000
