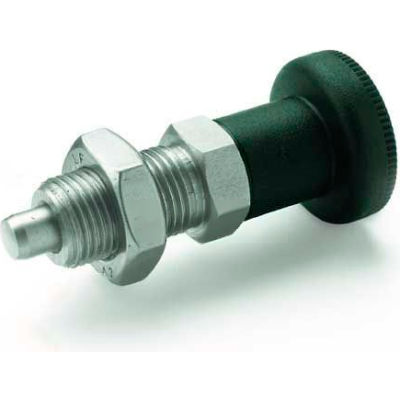

J.W. Winco GN617 Indexing Plunger w/ Knob Lock Nut SS 1.56x3.57lbs Pressure 3/8-24 Thread .2x.2" Pin

J.W. Winco GN617 Indexing Plunger w/ Knob Lock Nut SS 1.56x3.57lbs Pressure 3/8-24 Thread .2x.2" Pin

Item #: WBB1033449

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $18.75

Save $0.94 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

J.W. Winco GN717 Indexing Plunger w/ Knob Lock-Out SS 6.0x22.0N Pressure M12x1.75 Thread 8x8mm Pin

J.W. Winco GN717 Indexing Plunger w/ Knob Lock-Out SS 6.0x22.0N Pressure M12x1.75 Thread 8x8mm Pin

Sunex Tools 2639 10 PC. 1/2" Drive 6MM-19MM Metric Impact Hex Driver Set W/ Blow Molded Case

Sunex Tools 2639 10 PC. 1/2" Drive 6MM-19MM Metric Impact Hex Driver Set W/ Blow Molded Case

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Pull Ring Retractable Plunger SS Body SS Nose 0.75x3lbs Pressure 3/8-16 Thread

Pull Ring Retractable Plunger SS Body SS Nose 0.75x3lbs Pressure 3/8-16 Thread

Pull Ring Retractable Plunger SS Body SS Nose 0.5x2lbs Pressure 1/4-20 Thread

Pull Ring Retractable Plunger SS Body SS Nose 0.5x2lbs Pressure 1/4-20 Thread

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Female Double Swivel Ring - UNC 3/8" - 16

Female Double Swivel Ring - UNC 3/8" - 16

Double Swivel Ring - UNC 5/8" - 11

Double Swivel Ring - UNC 5/8" - 11

Indexing Plunger w/ Knob Lock Nut SS 1.56x3.57lbs Pressure 3/8-24 Thread .2x.2" Pin

Indexing plungers GN 617-NI are standard units for a wide range of indexing mechanisms. Type G or GK with threaded plunger ends are for applications where a special knob to customer's request or where their own design is required, or for such cases where the spindle is linked directly to an operating mechanism. The maximum heat resistance of the nylon plastic hand knob is 110°C or 230°F. For indexing plungers in stainless steel, without head, see GN 613. And for indexing plungers in stainless steel, with rest position, see GN 617.1.

Features
  • Threaded body: Stainless steel
  • European standard No. 1.4305 American standard 303 series)
  • Plunger pin: Stainless steel, chemically nickel plated
  • Knob--plastic version: Matte black glass fiber reinforced nylon plastic, not removable
  • Knob--stainless steel version: European Standard No. 1.4305
  • Lock nut: Stainless steel, DIN 439/ISO 4035


  • Product Details

    • Lock Out No
    • End Pressure Start 1.56 lbs
    • Description Indexing Plunger
    • Lock Nut Yes
    • Type With Plastic Knob
    • End Pressure Full 3.57 lbs
    • Nose Material Stainless Steel
    • Brand J.W. Winco
    • Series GN617
    • Manufacturers Part Number 617-5-3/8X24-AK-NI
    • Body Material Stainless Steel

    Weights & Dimensions

    • Pin Length .20 in
    • Knob Diameter .83 in
    • Length 1.77 in
    • Pin Diameter .20 in
    • Thread Size 3/8-24 in
    • Thread Length .67 in
