This indexing Plunger is used in applications which require surface mounting and the plunger has to stay in its retracted position. To achieve this, the knob is rotated 90° after being retracted. The head of the plunger body is provided with a suitable notch in opposite positions so as to prevent the plunger from accidentally slipping back into its forward position. The series has been expanded with additional plunger pin lengths to widen the application opportunities. Maximum heat resistance of nylon plastic hand knob is 230°F.

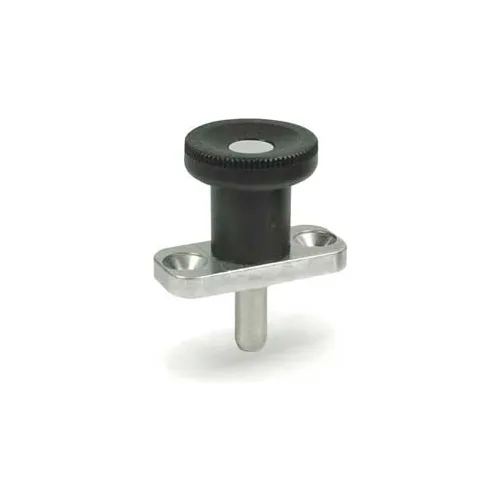

Plate Mount Indexing Plunger - Lock-Out Type Stainless Steel .31"x.71" Pin
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$17.25
1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 2.13 in |
| Pin Length | 0.71 in |
| Pin Diameter | 0.31 in |
| Plate Thickness | 0.22 in |
| Knob Diameter | 1.22 in |
| Plate Length | 1.81 in |
| Plate Width | 0.79 in |
| Mounting Hole Diameter | 0.21 in |
Product Details
| Start-End Pressure | 3.48 lbs |
| Final End Pressure | 6.29 lbs |
| Type | Lock-Out |
| Country of Origin | Import |
| Material | Stainless Steel |
| Description | Plate Mount Indexing Plunger |
| Manufacturers Part Number | 8W18L62 |
| Brand | J.W. Winco |
