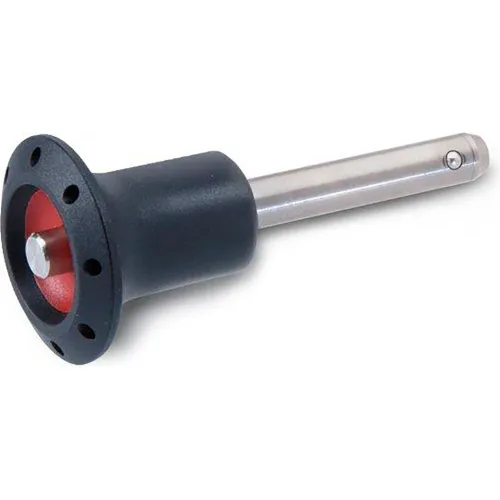

J.W. Winco GN113.6 Heavy Duty Ball Lock Pins, Plastic Grip, SS Shank, 0.24" Pin Dia, 0.98"L Pin

GN 613-NI indexing plungers in stainless steel are a low cost alternative with reduced dimensions. Indexing plungers with threaded spindles are for applications where a special knob to customer's request or own design is required or for such cases where the spindle is linked directly to an operating mechanism. For an additional cost, a special installation tool for GN 613.1 is available. Two slots are provided in the upper end of the body which are accessible with the knob in its retracted position. The maximum heat resistance of the nylon plastic hand knob is 110°C or 230°F. ...

Indexing plungers GN 617-NI are standard units for a wide range of indexing mechanisms. Type G or GK with threaded plunger ends are for applications where a special knob to customer's request or where their own design is required, or for such cases where the spindle is linked directly to an operating mechanism. The maximum heat resistance of the nylon plastic hand knob is 110°C or 230°F. For indexing plungers in stainless steel, without head, see GN 613-NI. And for indexing plungers in stainless steel, with rest position, see GN 617.NI. Features Threaded body: Stainless steel ...

Indexing Plunger Standard Lock-Out & Nut Black 19.0x45.0N Pressure M20x1.5 Thread 10x10mm Pin Indexing plungers GN 617.1 with lock-out position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. The head of the plunger body is provided with a suitable notch in opposite positions so as to prevent the plunger from accidentally slipping back into its forward position. The maximum heat resistance of the nylon plastic hand knob is 110°C or 230°F. For indexing plungers with a ...

This indexing Plunger is used in applications which require surface mounting and the plunger has to stay in its retracted position. To achieve this, the knob is rotated 90° after being retracted. The head of the plunger body is provided with a suitable notch in opposite positions so as to prevent the plunger from accidentally slipping back into its forward position. The series has been expanded with additional plunger pin lengths to widen the application opportunities. Maximum heat resistance of nylon plastic hand knob is 230°F.

GN 717 are a range of low cost indexing plungers which function well in small dimensions. However, their use should be limited to such applications where high precision indexing is not required. The maximum heat resistance of the nylon plastic hand knob is 110°C or 230°F. Features Threaded body: Steel, Zinc-plated, blue passivated Plunger pin: Stainless steel, European Standard No. 1.4305 Spring: Stainless steel, European Standard No. 1.4310 Pull ring version: Stainless steel, European Standard No. 1.4310 Pull knob version: Matte black glass fiber reinforced nylon plastic, not ...
