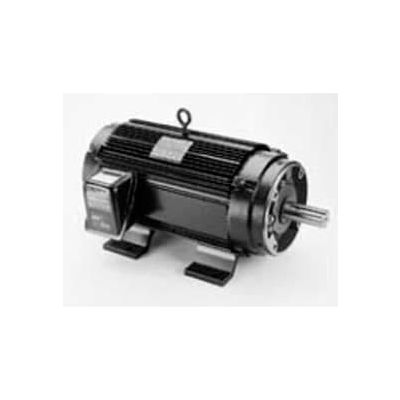

Marathon Motors Inverter Duty Motor, Y542, 213THTL7776, 3HP, 230/460V, 1200RPM, 3PH, 213TC, TENV

Marathon Motors Inverter Duty Motor, Y542, 213THTL7776, 3HP, 230/460V, 1200RPM, 3PH, 213TC, TENV

Item #: WBB869686

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $2,163.00

$360.50/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

US Motors Inverter Duty, 5 HP, 3-Phase, 1760 RPM Motor, H5V2BC

US Motors Inverter Duty, 5 HP, 3-Phase, 1760 RPM Motor, H5V2BC

Marathon Motors Inverter Duty Motor, Y542, 213THTL7776, 3HP, 230/460V, 1200RPM, 3PH, 213TC, TENV

Designed for inverter or vector applications where up to a 1000:1 constant Torque speed range is required. Typical use includes: material handling, machine tools, conveyors, crane and hoist, pumps, and other industrial machinery installed in dusty or dirty environments.

Product Details

  • 60 Hertz kW 2.24 kW
  • Mounting Location C-Face Rigid
  • Bearing Drive End Ball
  • Assembly Required F1 Only
  • RPM 1200 rpm
  • Ambient Temperature 40 °C
  • KVA Code K
  • IP Code 43
  • Insulation Class F
  • RPM Range 1101-1200 rpm
  • Voltage 230/460 V
  • Frame 213TC
  • Inverter Speed Range Constant 1000:1
  • Horsepower 3 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • 60 Hertz Full Load Amps 9.4/4.7 FLA
  • Duty Continuous
  • Enclosure TENV
  • Phase 3
  • Orientation Horizontal
  • Starting Type Inverter Only
  • Brand Marathon Motors
  • Motor RPM 60 Hertz 1200 rpm
  • Thermal Protection Thermostats (Normally Closed)
  • Manufacturers Part Number Y542
  • Catalog Number Y542
  • 60 Hertz FLE 82.50 Percent FLE
  • 60 Hertz SF 1 V

Compliance & Certifications

  • NEMA Design B
  • CSA Certified Y
  • UL Recognized Construction and Protector
  • CE Approved Y

Weights & Dimensions

  • Drive End Bearing Size 6309
  • Opposite End Bearing Size Ball
  • Weight 105 lbs
