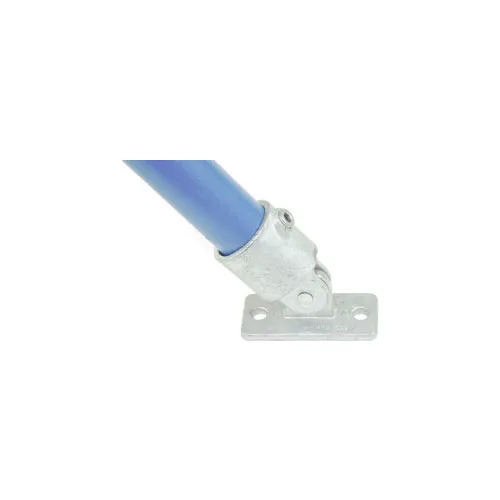

Kee Safety - C58-5 - Kee Klamp Swivel Flange, 3/4" Dia.

Kee Klamp® Fittings Parapet Flange A component designed to retrofit roof parapets that are an unsafe height. Rail anchor is angled 25 degrees from the vertical so that the building's visage is unaffected by the implemented railing. Two holes are located in the top mounting bracket for mounting directly into the parapet. The two set screws in the vertical socket give greater side-load stability to the angled upright.

Kee Klamp® Fittings Offset Rail Wall Flange The Type 265 fitting is designed for palm fixing guardrailing and balustrading to walls, parapets steps and ramps. The fitting has been designed with an offset barrel to enable clearance of overhangs and cappings.

Kee Klamp® Fittings Rail Flange Ideal when a structural fixing is required. When fixing guardrailing and balustrades, Type 62 should always be used. The holes are of sufficient diameter to insure proper fixing with either a mechanical or chemical anchor. The two set screws in the vertical socket give greater sideload stability to the upright. It is recommended that the fixing holes in the flange should be in line with the applied load. 5/16" diameter fixing holes.

Kee Klamp® Fittings Round Base Flange This structural base flange can be used when fixing guard railing or balustrades. There is a single mounting hole located inside the fitting. This allows for a cleaner look. The two set screws in the vertical socket give greater side-load stability to the upright.

Kee Klamp® Fittings Offset Wall Flange This fitting is designed for side palm fixing of uprights to steel channels, walls, parapets, steps and ramps. The upright cannot drop through the socket. 7/16" diameter of holes.
