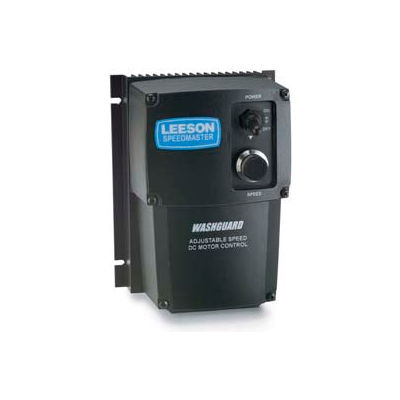

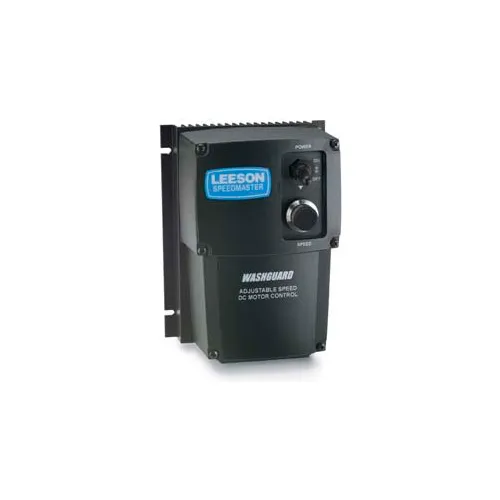

Leeson Motors DC Controls SCR Series, PWM Series , NEMA 4X, Non-Reversing, 1PH, 1/4-1HP/1/4-2HP

Leeson Motors DC Controls SCR Series, PWM Series , NEMA 4X, Non-Reversing, 1PH, 1/4-1HP/1/4-2HP

Item #: WBB587752

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • NEMA 1 General Purpose - Non Reversing
  • NEMA 4X Non Reversing
  • Chassis w/ Speed Pot - Non Reversing
  • NEMA 4X Reversing
  • NEMA 1 General Purpose - Reversing w/ Dynamic Braking

NEMA 4X Non Reversing

$626.00 up to 41% OFF

Price: $382.95

Save $19.15 with 5% off when you use your Global Industrial Credit Card.

Quantity Discount

  • Buy 1-2 $382.95 ea.
  • Buy 3+ $366.95 ea.

Quantity

Customers Also Viewed

These are General Purpose drives designed for use with Permanent Magnet or Shunt wound DC motors. NEMA 1 enclosed drives are suitable for most industrial applications. The NEMA 4X controls are best suited for washdown or outdoor installations or for extremely dusty applications. Chassis only drives are available for building into equipment, machinery or existing enclosures. Most controls have a dual voltage switch allowing the control to be used with either 115 volt or 230 volt, single-phase, input power at either 50 or 60 Hz service. It is important that the proper voltage motor be selected to use with the available power supply.

  • BRAND Leeson
  • MANUFACTURERS PART NUMBER 174102.00
  • HP RATING AT 1 PHASE 115 VOLTS 1/8 to 1
  • TYPE NEMA 4X Non Reversing
  • HP RATING AT 1 PHASE 230 VOLTS 1/4 to 2
  • OUTPUT CURRENT AMPS 10
