Little Giant

Model # :WBB215774

MPN #: 554621

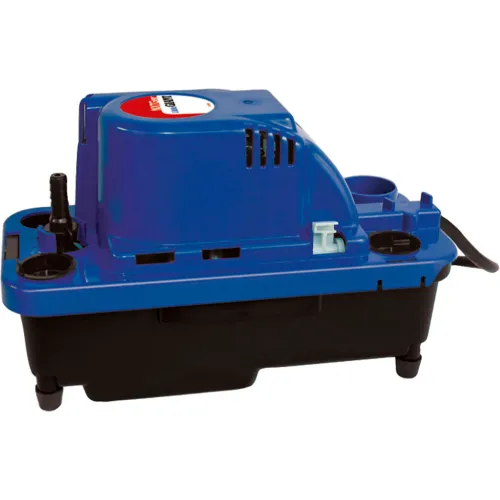

Little Giant® VCMX-20UL Condensate Removal Pump 230V

Product Description
The 230 Volt VCMX-20UL is designed for condensate removal where gravity drainage is not available for air conditioning or high efficiency gas furnaces systems. It features an oil resistant tank, stainless steel motor shaft and flexible installation options. Features a built-in check valve. Optional External Overflow Safety Switch B215777 with 72" cable sold separately.

  • ¼-Turn check valve (allows servicing without removal of tubing; eliminates water spills)
  • Patent-Pending Cooling Design (improved cooling increases pump life)
  • Rubber Feet (absorbs vibration on hard surface installations.
  • External Test/Run Lever (Quick test/run lever & easy drainage of tank for servicing)
  • Oil-resistant tank and check valve (eliminate problem of cracked tank with exposure to oil)
2 Year Limited Warranty.

PRICE
$99.95

1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length10-3/16 in
Width4-13/16 in
Height6-1/2 in
Cord Length6 ft
Shut Off20 ft
Discharge Head3/8" Barb ft
Suction Draw Head19 ft

Product Details

Max Temperature120 °F
For Use WithAir Conditioner, Gas Furnace, Condensing Boilers
Gallons per Minute1.1 gal/min
Plug Configuration6-15P
Wattage75 W
MaterialABS Plastic
OperationFully Automatic: Start, Stop, Safety Switch
Phase1
Manufacturers Part Number554621
BrandLittle Giant
Horsepower1/30 HP
Amperage0.6 / 0.5 A
Hertz50/60 Hz
Voltage230 V
Gallons per Hour69 @ 5'H gal/hr
Max Liquid Temperature140 °F

Warranty

Warranty2 yr

Compliance & Certifications

CertificationscCSAus
