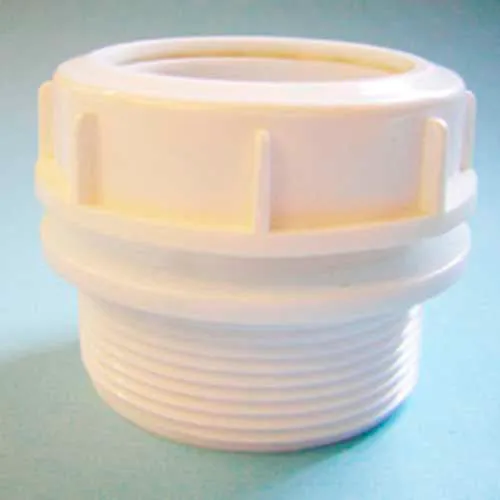

MBSP - Drum Pump NX Adapter - 2" Male BSP & NPT Pipe Thread

2" Male NPS threaded Dual Action Vent with 4psi spring for use in 6" fill port caps with 2" female pipe thread. Manufactured from FDA food grade materials in a strong glass coupled Polypropylene under an ISO 9000 Quality Management system. Each adapter is bagged and labeled for cleanliness and ease of identification. The CPP glass coupled Polypropylene material is rated to 150psi and suitable for most chemicals carried in IBC Totes. Thread Details: 2" NPS female pipe thread. 59.6mm (2.35") outside diameter and 2.21mm (0.09") and 11.5 TPI thread pitch (distance between threads) to ANSI ...

Adapters create compatible connections between IBC valves and other adapter connections for secure content transfer and easy access. Features a hose thread adapter for attaching and securing of hoses. Each IBC adapter is individually packaged for sterility and clear identification. Its high-quality polypropylene construction is rated to 150 psi and suitable for use with most IBC chemical contents. Thread Compatibility Details: 2" NPS male pipe thread 59.6mm (2.35") outside diameter and 2.21mm (0.09") and 11.5 TPI thread pitch (distance between threads) to ANSI B1.20.1-1983 Common ...

Adapter for Hydraulic size convertion or connection. Features Designed to simplify the connection of hydraulic components and to ensure proper hose routing for longer hose service life Helps to eliminate purchasing & replacing expensive specialty hose couplings, as they are replaced throught a machine's lifetime Meets JIC/SAE specifications 2404 male connector style for agricultural, construction, and industrial applications For Use In Agricultural, construction & industrial applications Construction Steel

Drum bung adapters create compatible connections for installing pumps on plastic drums. Its high-quality polypropylene construction is rated to 150 psi and suitable for use with most plastic drum chemical contents Thread Compatibility Details: S56X4 Tri Sure Male Buttress 56.0mm (2.20") outside diameter and 50.0mm (2.00") inside diameter with 4.0mm (.158") thread pitch (distance between threads) Refer to Key S56X4 in REFERENCE CHART.

This self-priming rotary pump can empty a 55-gallon drum in less than two minutes. Easy turn crank operation handles viscosities up to 1500 SSU. Steel intake tube fits 15-30- and 55-gallon drums . Curved Discharge Spout with 1" O.D., 2" NPS Bung Adapter Fits 15-, 30- and 55-Gallon Drums, Pump Body Material Aluminum, Buna Seal, Max. Temp.140 Degree F, GPM 27 @120 RPM, Discharge Hose Material Polyethylene, Internal Parts Material Aluminum Alloy and Steel, Inlet Size 1 Inch , Overall Length 48 ".
