Hytrol® Model TL 17'1"L Heavy Duty Slider Bed Conveyor 17-1-TL42 - 36"W Belt

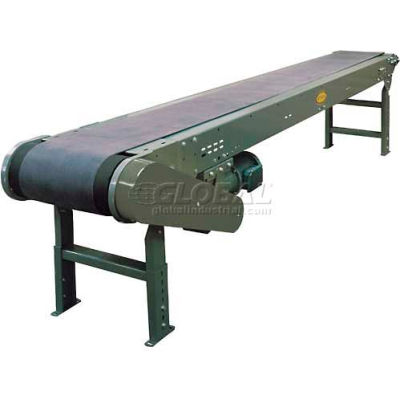

Shown with Optional Floor Supports

Hytrol® Model TL 17'1"L Heavy Duty Slider Bed Conveyor 17-1-TL42 - 36"W Belt

Item #: WBB918684

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $5,424.00

$904.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $5,424.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Hytrol® Model TL 17'1"L Heavy Duty Slider Bed Conveyor 17-1-TL42 - 36"W Belt

Standard specifications include:

BED - 6-5/8" deep x 12 ga. formed steel Slider Bed is powder coat painted. Reinforced with 3/4" pipe which forms sockets for guard rails.

BELT - Ultimate 140BBS - Nitrile Belt

END DRIVE - Located on discharge end of conveyor, chain guard on left hand side.

DRIVE PULLEY - 8" dia. with 1-3/16" dia. shaft at bearings, machine crowned and fully lagged.

TAIL PULLEY - 6" dia. with 1-3/16" dia. shaft at bearings, machine crowned.

SNUB IDLER - Adjustable 2-1/8" dia. for tail end; 2-1/2" dia. for drive end. Pre-lubricated ball bearings. Guards included.

RETURN IDLER - Adjustable 1.9" dia. pre-lubricated ball bearings.

TAKE-UP - Take-ups at tail pulley. Provides 4" of belt take-up.

BEARINGS - Sealed, pre-lubricated, self-aligning, ball bearings on drive and tail pulleys.

MOTOR - 1 HP 115 - 1 Phase - 60 Hz. Premium Energy Efficient C-Face.

SPEED REDUCTION - Sealed worm gear C-Face speed reducer. No. 50 roller chain to drive pulley.

BELT SPEED - Constant 65 FPM.

CAPACITY - Maximum Load per Linear Foot of conveyor is 100 lbs.

Note: Floor supports are not included; please order separately.

Product Specifications

  • LENGTH FEET17'1"
  • CAPACITY LBS450
  • ASSEMBLYUnassembled
  • BELT LENGTH FEET15
  • BELT WIDTH INCHES36
  • BRANDHytrol®
  • CONSTRUCTION6-5/8" x 12 ga Formed Steel Slider Bed
  • CONVEYOR SPEED65 FPM
  • DRIVE PULLEY DIAMETER INCHES8
  • HORSE POWER1
  • MANUFACTURERS PART NUMBER17-1-TL42
  • OVERALL BED WIDTH INCHES42
  • VOLTAGE115
  • WEIGHT LBS852
