Modine

Model # :WBB936345

MPN #: V279SB01SA

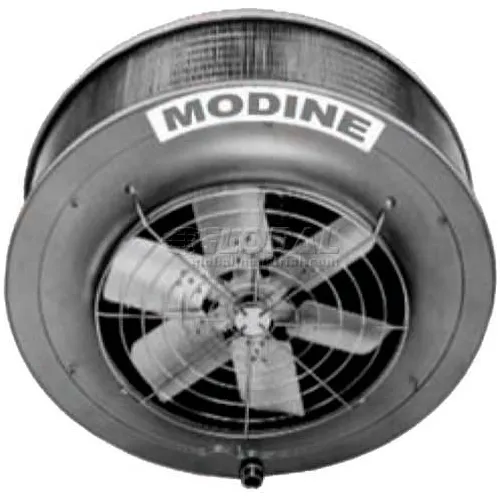

Modine Vertical Unit Heater V279SB01SA, 279000 BTU, 5460 CFM, 115V

Product Description
Modine Vertical Unit Heater V279S01, 279000 BTU, 5460 CFM, 115V

Vertical delivery unit heaters are ideal for heating buildings with high ceilings or areas that require the heater to be mounted above obstructions such as crane ways. Selection from a variety of heat throw patterns is made easy by choosing from four types of air deflectors. Heat throw patterns range from a high-velocity narrow jet to a gentle-velocity broad based cone of heated air.

Must be installed by a licensed contractor. ETL Listed. MADE IN U.S.A. 1 Year Limited Warranty.

Click below to view the following:
PRICE
$3,949.00

1
1
Ships in 90 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Height20-1/8 in
Diameter34-3/4 in
Max Mounting Height39 ft
Heat Spread32 ft

Product Details

Hot Water Final Air Temperature98 °F
Water Flow22.2 gal/min
MaterialSteel
Phase1
Manufacturers Part NumberV279SB01SA
BrandModine
TypeSteam & Hot Water Heater
CFM5460 CFM
Horsepower1/2 HP
ColorGray
Amperage7.5 A
Steam Final Air Temperature111 °F
Airflow DirectionVertical
Input (BTU/H) 2 lb Steam 60°F Entering Air279000 BTU/hr
Voltage120 V
IncludesElectric Junction Box, Outlet Fan Guard, Copper Tubing
Amps High7.5 A
Power Cord TypeElectric Junction Box
Output (BTU) Hot Water 200°F In 60°F Entering Air212650 BTU

Warranty

Warranty1 yr

Compliance & Certifications

CertificationscETLus, cCSAus
