Vertical delivery unit heaters are ideal for heating buildings with high ceilings or areas that require the heater to be mounted above obstructions such as crane ways. Selection from a variety of heat throw patterns is made easy by choosing from four types of air deflectors. Heat throw patterns range from a high-velocity narrow jet to a gentle-velocity broad based cone of heated air. CSA certified. MADE IN U.S.A. 1 Year Limited Warranty.
Click below to view the following:

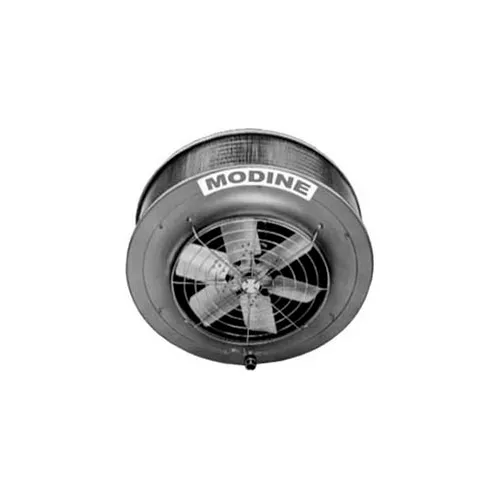

Modine Vertical Explosion Proof Unit Heater V279SB09SA-460, 279000 BTU, 5460 CFM, 460V
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$7,499.00
1
1
Ships in 90 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 18 - 5/8 in |
| Width | 34 - 3/4 in |
| Height | 34 - 3/4 in |
| Weight | 112 lbs |
| Fan Diameter | 34 - 3/4 in |
| Connection Size | 2-1/4 in |
| Max Mounting Height | 39 ft |
| Heat Throw | 30 ft |
Product Details
| Hot Water Final Air Temperature | 98 °F |
| Water Flow | 22.2 gal/min |
| Material | Steel |
| Phase | 3 |
| Manufacturers Part Number | V279SB09SA-460 |
| Brand | Modine |
| Type | Steam & Hot Water Heater |
| CFM | 5460 CFM |
| Horsepower | 1/2 HP |
| Color | Gray |
| Amperage | 1/2 A |
| Steam Final Air Temperature | 111 °F |
| Airflow Direction | Vertical |
| Input (BTU/H) 2 lb Steam 60°F Entering Air | 279000 BTU/hr |
| Voltage | 460 V |
| Includes | Electric Junction Box, Outlet Fan Guard, Copper Tubing |
| Amps High | 2 A |
| Power Cord Type | Electric Junction Box |
| Output (BTU) Hot Water 200°F In 60°F Entering Air | 212650 BTU |
| Amps Low | 1 A |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | CSA |
