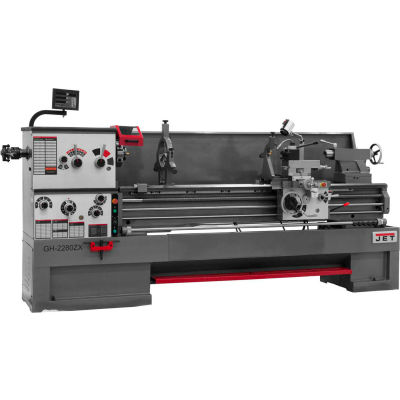

JET® 321895 GH-26120ZH Lathe w/ ACU-RITE 200S DRO & Taper Attachment

JET® 321895 GH-26120ZH Lathe w/ ACU-RITE 200S DRO & Taper Attachment

Item #: WBB1140947

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • SWISS CUT 8050 Cutting Fluid - 1 Gallon Container

    $35.95

  • JET® 321520 TAK-GHW Taper Attachment Kit

    $2,799.00

  • Bison Extended Wrench for Scroll Chuck with 10 & 12" OD

    $44.95

$50,157.14 up to 18% OFF

Price: $41,039.00

$6,839.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $41,039.00 or save 5% on purchase.

Quantity

Customers Also Viewed

JET® 321895 GH-26120ZH Lathe w/ ACU-RITE 200S DRO & Taper Attachment

The JET® ZH-Series 4-1/8" spindle bore lathes feature a clutch operated headstock, universal gearbox, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. Features you've come to expect in a JET® Lathe that is backed by the industry-leading JET® Two Year Warranty.

Features:
  • 4-1/8 Spindle Bore"
  • Clutch operated headstock with all headstock gears hardened and ground
  • Heavy-duty tailstock and quill
  • Rapid power traverse to cross slide and carriage
  • Full Length splash guard
  • 12 speeds range 36-1600 RPM
  • Headstock gearbox design allows easy selection of inch and metric threading
  • Bed ways are induction hardened and ground for durability
  • Standard Equipment:
  • 4-Way Toolpost
  • 12 3-Jaw Direct Mounted Scroll Chuck with jaws"
  • Face Plate
  • 2 Steady Rests
  • Follow Rest
  • Coolant System
  • Halogen work lamp

Product Specifications

  • CARRIAGE TRAVEL (IN.)108-1/4
  • COMPOUND SLIDE TRAVEL (IN.)5-1/2
  • CROSS SLIDE TRAVEL (IN.)12-3/32
  • DESCRIPTIONLathe
  • DISTANCE BETWEEN CENTERS (IN.)120"
  • FOLLOW REST CAPACITY (IN.)25/32 - 3-15/16
  • LENGTH OF GAP (IN.)8
  • NUMBER OF INCH THREADS48
  • NUMBER OF LONGITUDINAL AND CROSS FEEDS65
  • NUMBER OF METRIC THREADS22
  • NUMBER OF SPINDLE SPEEDS12
  • RANGE OF INCH THREADS (TPI)2-30
  • RANGE OF LONGITUDINAL FEEDS (IN./REV.).0023 - .0937
  • RANGE OF METRIC THREADS (MM)1 - 14
  • RANGE OF SPINDLE SPEEDS (RPM)36 - 1,600
  • SPINDLE BORE (IN.)4.125"
  • SPINDLE MOUNTD1-8
  • SPINDLE TAPER (WITH SLEEVE)MT-5
  • STEADY REST CAPACITY (IN.)Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16
  • SWING OVER BED (IN.)26
  • SWING OVER CROSS SLIDE (IN.)16-1/2"
  • SWING THROUGH GAP (IN.)34
  • TAILSTOCK SPINDLE TRAVEL (IN.)6
  • TAPER IN TAILSTOCK SPINDLEMT-5
  • WEIGHT LBS9362
  • WIDTH OF BED (IN.)16
  • BRANDJET®
  • LENGTH INCHES 178
  • DROAcu-Rite 200S
  • COLLET CLOSERNo
  • LIMITED WARRANTY2-Year Warranty
  • TAPER ATTACHMENTYes
  • STYLELarge Spindle Bore
  • RANGE OF CROSS FEEDS (IPR).0040 - .0404
  • MAX TOOL SIZE (IN.)1-1/4 x 1-1/4
  • TYPEEngine
  • MODELGH-26120ZH
  • PREWIRED230
  • WIDTH INCHES43
  • HEIGHT INCHES57
  • SIZE26 x 120
  • MANUFACTURERS PART NUMBER321895
  • MOTOR PHASE3 Ph
  • MANUFACTURER'S WARRANTY2 Years
  • MOTOR HORSEPOWER10 HP
