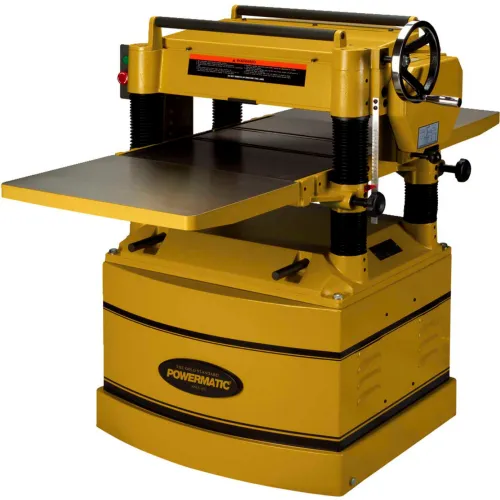

Powermatic 1791316 Model 209HH-3 5HP 3-Phase 230V 20" Planer W/ Byrd Shelix Helical Cutterhead

Powermatic 1791316 Model 209HH-3 5HP 3-Phase 230V 20" Planer W/ Byrd Shelix Helical Cutterhead

Item #: WBB57941

Not Yet Rated

Free Shipping

$5,528.57 up to 19% OFF

Price: $4,499.99

$750.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.
We will notify you when this product is back in stock.

Customers Also Viewed

This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20 planing capacity will handle the most demanding work. The helical cutterhead provides quieter operation and finer finishing than conventional systems, and the four-sided knife inserts seat themselves without requiring a set-up gauge. The 5" dust port connects easily to any dust collector. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.

Features:

  • The Byrd® SHELIX® helical cutterhead with 100 knife inserts provides smoother, quieter cutting and finer finish than conventional systems
  • 5HP motor and 20 planing capacity for heavy duty work
  • Fully enclosed base cabinet with integrated casters for shop mobility
  • Cast iron table with extensions creates a big 55-1/2 x 20" working area
  • Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility
  • Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
  • 460V operation requires an additional 460V magnetic switch: 209-5016E
  • Byrd® helical cutterhead with knife inserts
  • 5 diameter dust port

  • FEED RATE (FPM) 24/31 & 16/20(W/Gear Change)
  • PREWIRED VOLTAGE 230
  • MOTOR PHASE 3
  • MOTOR HORSEPOWER 5
  • DUST COLLECTION MINIMUM REQUIRED (CFM) 900
  • DUST PORT DIAMETER INCHES 5
  • TABLE SIZE INCHES (L X W) 25-3/4 X 20
  • MAXIMUM DEPTH OF CUT INCHES 3/32
  • AMPS 14/7
  • BRAND Powermatic
  • MANUFACTURERS PART NUMBER 1791316
  • TYPE Planer
  • MODEL 209HH-3
  • VOLTAGE 230
  • NUMBER OF KNIVES OR INSERTS 100
  • CUTTERHEAD DIAMETER INCHES 3-3/16
  • CUTS PER MINUTE 20000
  • CUTTERHEAD SPEED (RPM) 5000
  • MAXIMUM PLANING THICKNESS INCHES 8
  • MAXIMUM PLANING WIDTH INCHES 20
  • TYPE OF CUTTERHEAD Helical Inserts
  • APPROVALS OR CERTIFICATIONS CSA Certified
  • MINIMUM PLANING LENGTH INCHES 6-3/4
  • MAXIMUM FULL WIDTH DEPTH OF CUT INCHES 3/32
  • STYLE Floorstanding
  • MANUFACTURERS LIMITED WARRANTY YEARS 5
