Model 535 Replacement Parts, RIDGID 47570

1/2" - 2" NPT, 115V, 25 -60 Hz 300 Compact shown with Model 250 Folding Wheel Stand Heavy-Duty proven performance Lightweight, portable design Fast transporting and set-up Self-contained oil system with adjustable flow control Versatility for threading and grooving Motor Control: Heavy duty rotary FOR/OFF/REV with integral foot switch Chuck: Hammer-type with replaceable, rocker-action jaw inserts Oiling System: Through-the-head, with integral oil reservoir, self-priming, constant-flow, gerotor pump Cutter: Model 360, roll-type cut off, self-centering, full-floating Reamer: Model 344, ...

Ridgid® Model No. 300 Only Power Drive, 115V, 50/60 Hz, 57Rpm Ridgid 75075 Features: Motor: 1/2 HP, Universal reversible motor, 115V Switch: Heavy-duty FOR/OFF/REV and Integral Foot Switch Chuck: RIDGID speed chuck with replaceable rocker-action jaws Spindle Speed: 57 RPM Rear Centering Device: Cam-action turns with chuck Support Bar: Heavy-duty (2) (1) Power Drive only with foot switch

Compact, lightweight design. One-piece aluminum housing. Two easy-to-use carrying handles. Integral foot switch hanger. Powerful motor and transmission. Through die head oiling. Adjustable oil flow control. Approved by CSA to CSA and UL standards (115V only) Specifications Pipe Capacity: 1/4"-1 1/2" (6mm-37mm). Bolt Capacity: Bolt: 5/16"-1" (6mm-25mm). Motor: 1/2 HP universal motor 50/60 Hz. Motor Control: ON/OFF heavy duty switch and integral foot switch. Spindle Speed: 44 RPM right hand operation. Front Chuck: Hammer type with replaceable rocker action jaw inserts. Rear Centering ...

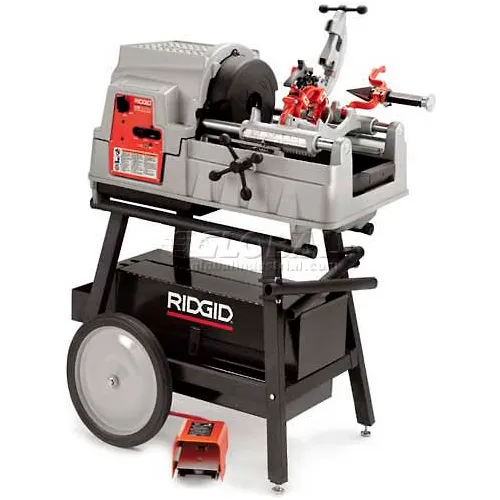

Ridgid 15682 Model 300 Complete Pipe Threading Machine, 115V Switch: Heavy-duty FOR/OFF/REV and integral foot switch Chuck: RIDGID speed chuck with replaceable rocker-action jaws Rear Centering Device: Cam-action turns with chuck Support Bar: Heavy-duty (2) Includes: 1-1206 Stand, 1-311 Carriage w/Lever, 1-341 Reamer, 1-360 Cutter, 1-811A Universal Die Head, Set 1/2 - 3/4 in Universal Alloy Dies, Set 1 - 2 in. Universal Alloy Dies, 1-32 Transporter, 1-418 Oiler, 1-Gallon Nu-Clear Oil

Ridgid Model No. 700 Power Drive, 115V, 50/60 HzHeavy-duty hand-held power drive. reversible 115V or 230V universal motor. Capacity 1/8"-2" (3mm-50mm) pipe, 1/4"-1" bolt with OO-RB die heads. Designed for RIDGID No. 12-R die heads. Other RIDGID die heads (OO-R, OO-RB, 11-R) using adapters, threading 2 1/2" through 6" (62mm-150mm) with 141/161 geared threaders. Also used with 258/258XL pipe cutters. Die heads not included, see page 4.5. Approved by CSA to CSA and UL standards (115V only). Specifications Motor: Universal, 1/2 HP, 115V or 230V 50/60 Hz. Switch: Double-throw reversible. Gear ...
