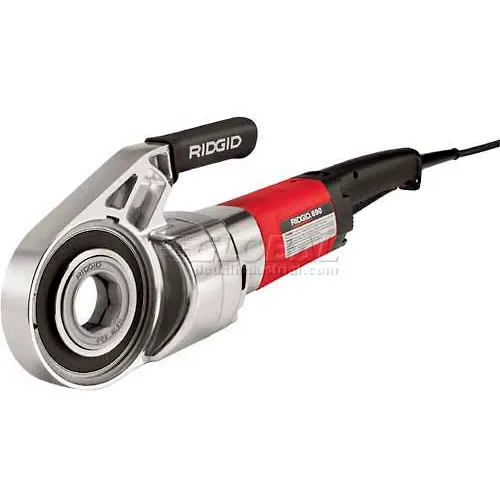

Ridgid Model No. 690 Power Drive W/Case & Support Arm, 115V, 1/2"-2" 25-60 NPTThe 690 Power Drive is a new lightweight and powerful hand-held power drive. It is designed for threading 1/8" - 2" pipe with the use of 11-R Die Heads. The 690 comes equipped with a full set of 11-R Die Heads, 1/2" - 2", the 691 Support Arm and a durable Carrying Case. The 690 Power Drive is the perfect lightweight and portable power drive for maintenance and repair workers, as well as service plumbers requiring 2" pipe capacity. Specifications Capacity: 1/8" - 2" (3 - 51 mm) pipe. Weight: 19 lbs. (8.6 kg), Power Drive Only. Length: 24 in. (61 cm). Motor: Universal 1020 Watt, 230 or 115 volt, 50/60 Hz. Approved by CSA to CSA and UL standards (115V only). Switch: Heavy-duty paddle switch with safety lock-off device (automatically locks off when released). Separate FORWARD/RELEASE switch. Gear Head: Spur gear reduction/face gear drive. All shafts, ball and needle bearing mounted. Permanently lubricated gear housing. Gear Housing: Die cast aluminum. Body & Handle: Durable, heavy-duty, fiberglaSS-reinforced, industrial plastic. Spindle Speed: 32 RPM. Die Heads: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" (type 11-R). Support Arm: No. 691. Die Head Adapter: Used with 1/8" through 1 1/4" die heads. Carrying Case.
RIDGID® Model No. 690 Power Drive W/Case & Support Arm, 115V, 1/2"-2" 25-60 NPT
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$3,549.00
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 24 in |
| Weight | 55 lbs |
| Pipe/Tube Size | 1/8 in (NPT) (Min), 2 in (NPT) (Max) |
Product Details
| Type | Hand Held Power Drive |
| For Use With | 11R Die Heads |
| Pipe Capacity | 1/8 in (NPT) (Min), 2 in (NPT) (Max) |
| Voltage | 115 V |
| Includes | Threader, Dies, Carry Case, & Support Arm |
| Package Quantity | 1 |
| Manufacturers Part Number | 44923 |
| Brand | RIDGID |
| Speed | 32 rpm |
| Frequency | 50.0 Hz (Min), 60.0 Hz (Max) Hz |
Warranty
| Warranty | Lifetime |
