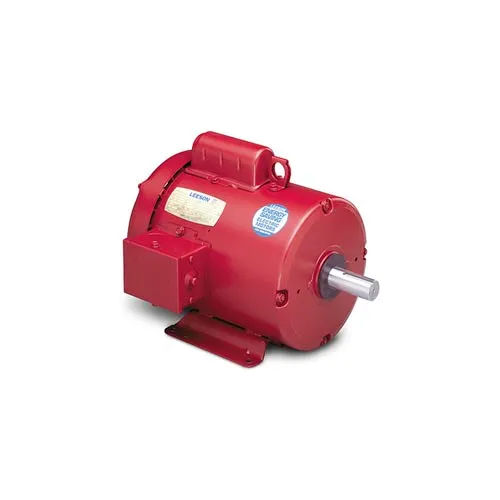

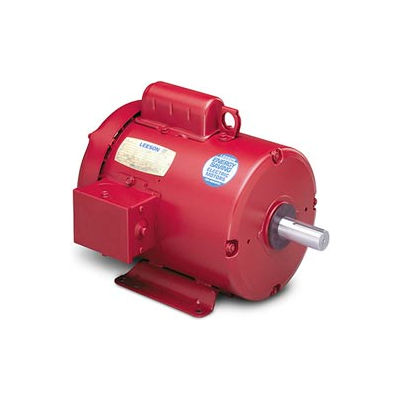

Leeson Motors - 1HP, 115/208-230V, 1725RPM, TEFC, Rigid Mount

Actual product may differ from image shown

Leeson Motors - 1HP, 115/208-230V, 1725RPM, TEFC, Rigid Mount

Item #: WBB217415

(1)

Enter zip code for delivery date estimate

Shipping to 10465 change

$802.00 up to 67% OFF

Price: $272.95

Save $13.65 with 5% off when you use your Global Industrial Credit Card.

Quantity Discount

  • Buy 1-2 $272.95 ea.
  • Buy 3+ $262.95 ea.

Quantity

Customers Also Viewed

Agricultural Motor: 1HP, 1725RPM, 56 Frame, Totally-Enclosed, Fan-Cooled (TEFC), 115/208-230V, 1PH, Continuous duty, Manual thermal protection, 1.15 Service Factor, Rigid Mount.

Heavy duty single phase Hi-Torque Motor is designed specifically for severe Farm duty applications.
Mechanical Features: Gasketed capacitor housing and conduit boxes provide protection in all environments. Double sealed ball bearings prelubricated with Exxon POLYREX® EM grease having operating temperature range of -20°F to +350°F and special formulation to provide extra bearing protection. Rubber boot over manual protector reset button provides weather protection.
Electrical Features: Low temperature manual overload protector protects against extreme overload. Class F copper windings and varnish. Capacitor start provides high starting torque with normal starting current.



  • HORSEPOWER 1
  • ENCLOSURE TEFC
  • FRAME 56
  • BRAND Leeson
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1725
  • RPM 1725
  • PHASE 1
  • VOLTAGE 115/208-230
  • COMPATIBLE WITH/REPLACES TechTop RD1-RS-TF-56H-4-B-C-1, Marathon F104
  • HERTZ 60
  • SERVICE FACTOR 1.15
  • THERMAL PROTECTION Manual
  • EFFICIENCY TYPE Standard
  • CONSTRUCTION Rolled Steel
  • AMBIENT TEMP C 40
  • SHAFT DIAMETER 5/8
  • SHAFT LENGTH INCHES 1-7/8
  • ROTATION CCW
  • ENCLOSURE TYPE Totally Enclosed
  • WEIGHT 33
  • UL Y
  • CSA Y
  • LEESON MODEL NO. M6C17FB10LL
  • UPC 69172000780
  • DUTY Continuous
  • RPM RANGE 1701-1800
  • MANUFACTURER PART # 110088.00
  • FL AMPS 14/7
  • BEARING-DRIVE-END 6203
  • DESIGN Capacitor Start Inductor Run
  • FL EFFICIENCY 74
  • is_motor Yes
