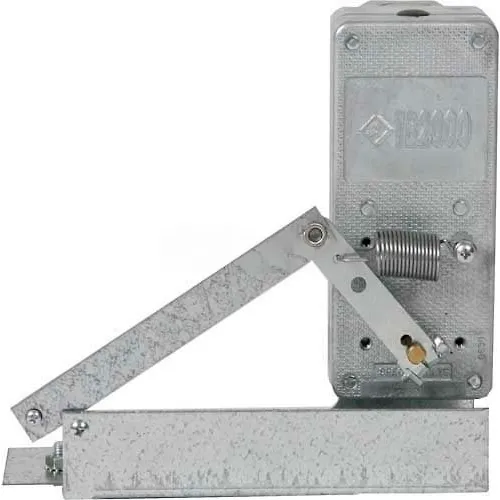

Motor Pack for Models 411/611 - MTR-611

Heavy duty motorized volume control dampers. The 1-1/2" flanged frame has welded corners for added strength. The 6" wide blades are center-pivoted for a full 90 degree rotation with parallel blade action. The stainless steel jamb seals help in keeping out light, air, and moisture. The dampers can be used for exhaust or supply applications and can be mounted in either a vertical or horizontal position; typically walls or curbs. Comes standard with an internally mounted factory installed 100-240 volt power open / spring close motor with end switches. MADE IN THE USA

The Model MTR-556 DP is a double panel exhaust shutter motor pack, designed to be used with shutter model 556-DP. Field installation is required to convert gravity exhaust shutter to motorized operation. This motor pack features power open spring close, which provides closure in the event of electrical failure. This motor pack is equipped with motor, motor bracket, linkage and mounting hardware. MADE IN THE USA

The model MTR-556 SP is a single panel exhaust shutter motor pack, designed to be used with shutter model 556-SP. Field installation is required to convert gravity exhaust shutter to motorized operation. This motor pack features power open spring close, which provides closure in the event of electrical failure. This motor pack is equipped with motor, motor bracket, linkage and mounting hardware. MADE IN THE USA

Heavy duty motorized volume control dampers. The 1-1/2" flanged frame has welded corners for added strength. The 6" wide blades are center-pivoted for a full 90 degree rotation with parallel blade action. The stainless steel jamb seals help in keeping out light, air, and moisture. The dampers can be used for exhaust or supply applications and can be mounted in either a vertical or horizontal position; typically walls or curbs. Comes standard with an internally mounted factory installed 100-240 volt power open / spring close motor with end switches. MADE IN THE USA

The Hat Channel is an extruded aluminum motorized volume control damper. The hat channel frame is 5" deep with 7" wide center-pivoted blades for a full 90 degree rotation with parallel blade action. The TPV blade and stainless steel jamb seals help in keeping out light, air, and moisture. The dampers can be used for exhaust or supply applications and can be mounted in a vertical or horizontal position; typically walls, curbs, or ductwork. Comes standard with an internally mounted factory installed 100-240 volt power open / spring close motor with an end switch. MADE IN THE USA
