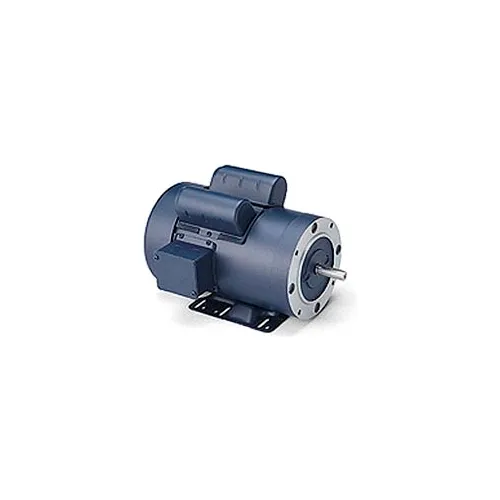

Leeson Motors - 5HP, 230V, 1740RPM, TEFC, Rigid C Mount, 1.0 S.F.

LEESON Electric and Lincoln Motors line of single phase General Purpose AC motors include both ODP and TEFC enclosures. Features include: Durable rolled steel frame Class B insulation High-quality ball bearings Easy-to-read nameplate Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation. UL Recognized Component Listing and CSA approval. Warranty - 12 months from date of first use or 18 months from date of manufacture, whichever comes first.

Washguard Pump Motor, 3-Phase: .75/.5HP, 3450/2850 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 56 Frame, RIGID C, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 2.5-2.4/1.2&2.2/1.1, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 75.5, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Length: 1-7/8", Shaft Diameter: SPECIAL. Washguard Motors with shafts for JM and Jet Pumps Durable RUST-OLEUM® white epoxy coating Stainless steel shaft, conduit box cover, nameplate, fan guard Special gaskets, slingers and seals Four endshield drains ...

General Purpose, Capacitor Start-Capacitor Run Motor: 1.5HP, 1740 RPM, Drip-Proof (DP) Enclosure, 56H Frame, Rigid Mount, 115/208-230V, 1PH, 60HZ, Name Plate Amps 13.4/6.7, Continuous duty, 1.15 Service Factor, Manual thermal protection, Efficiency: 81.5, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length 1-7/8, Shaft Diameter 5/8. Drip proof (DP)enclosure has vents in end shield and/or frame to prevent drops of liquid from falling into motor within a 15 degree angle from vertical. Designed for use in areas that are reasonably dry, clean, and well ventilated ...

Washguard White Epoxy Coated Motor, 3-Phase: 2HP, 1740 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 145 Frame, RIGID, 208-220/460V, 3PH, 60HZ, Name Plate Amps 6-5.6/2.8&5.2/2.6, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 84, Efficiency Type: Epact, Ambient 40 C, Reverse Rotation, Shaft Diameter: 7/8. Enhanced performance in wet, humid areas Durable RUST-OLEUM® white epoxy coating Stainless steel shaft, conduit box cover, nameplate, fan guard Special gaskets, slingers and seals Four endshield drains Moisture-resistant interior components Meets IP55 ...

Washguard II Motor with Stainless Steel Frame: 2HP, 1740 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 145 Frame, RIGID C, 208-220/460V, 3PH, 60HZ, Name Plate Amps 6-5.6/2.8&5.2/2.6, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 84, Efficiency Type: Epact, Ambient 40 C, Reverse Rotation, Shaft Diameter: 7/8. Superior, extended life in severe environments Paint-free exterior stainless frame and conduit box lid, specially processed endshields and conduit box housing Etched stainless steel nameplate Proven WASHGUARD mechanical and electrical features BISSC ...
