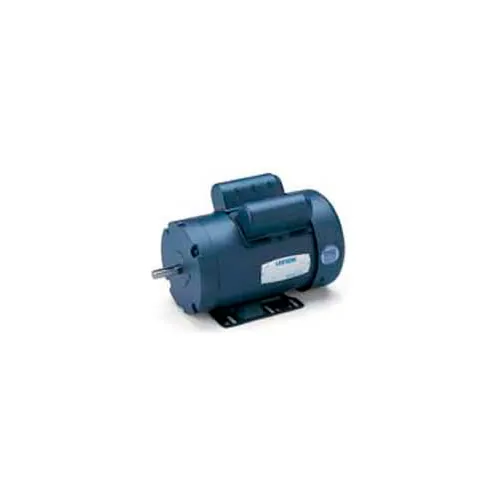

Leeson Motors Single Phase General Purpose Motor 3HP, 3450RPM, 56H, TEFC, 230V, 60HZ, Manual, 1SF

Pressure Washer Motor: 1.5HP, 3450RPM, 56 Frame, Totally-Enclosed, Fan-Cooled (TEFC), 115/208-230V, 1PH, Continuous duty, Manual thermal protection, 1.15 Service Factor, Rigid C Mount. Motors specially suited for hot or cold pressure washer applications and other single phase installations requiring minimum starting and running amperages. Capacitor start, capacitor run construction for reduced amperage. Double shield ball bearings prelubricated with Exxon POLYREX® EM lubricant, having operating temperature range of -20°F to +350°F and special formulation to provide extra long ...

LEESON Electric and Lincoln Motors line of single phase General Purpose AC motors include both ODP and TEFC enclosures. Features include: Durable rolled steel frame Class B insulation High-quality ball bearings Easy-to-read nameplate Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation. UL Recognized Component Listing and CSA approval. Warranty - 12 months from date of first use or 18 months from date of manufacture, whichever comes first.

General Specifications: NEMA 56 C-Face mounting face Mechanically locked ball bearing on shaft-end, limits axial shaft movement Quiet operation through "Super Hush" flow-through ventilation system 416 stainless steel shafts Quick Connect terminals to reduce installation time Auto re-set protectors Stator windings impregnated with extra heavy varnish system High overload capacities provided by high service factor ratings Double-sealed ball bearings UL and C.S.A recognized

LEESON Electric and Lincoln Motors line of single phase General Purpose AC motors include both ODP and TEFC enclosures. Features include: Durable rolled steel frame Class B insulation High-quality ball bearings Easy-to-read nameplate Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation. UL Recognized Component Listing and CSA approval. Warranty - 12 months from date of first use or 18 months from date of manufacture, whichever comes first.

Pressure Washer Motor: 3HP, 3450RPM, 56H Frame, Totally-Enclosed, Fan-Cooled (TEFC), 208-230V, 1PH, Continuous duty, Manual thermal protection, 1.0 Service Factor, Rigid C Mount. Motors specially suited for hot or cold pressure washer applications and other single phase installations requiring minimum starting and running amperages. Capacitor start, capacitor run construction for reduced amperage. Double shield ball bearings prelubricated with Exxon POLYREX® EM lubricant, having operating temperature range of -20°F to +350°F and special formulation to provide extra long life and ...
