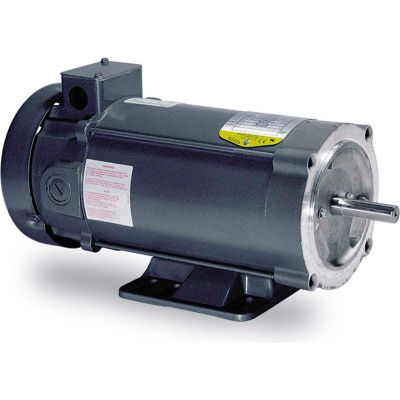

Baldor-Reliance Motor CDP3605, 5HP, 1750RPM, DC, 1810ATC, 3681P, TEFC, F1

Baldor-Reliance Motor CDP3605, 5HP, 1750RPM, DC, 1810ATC, 3681P, TEFC, F1

Item #: WBB388897

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 150/300
  • 150
  • 180

180

$4,906.00 up to 18% OFF

Price: $4,035.00

$672.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $4,035.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 5HP,1750RPM,DC,1810ATC,3681P,TEFC,F1

Features:
  • NEMA C-face with removable base
  • Tach adaptable
  • Class F insulation
  • Double sealed ball bearings
  • UL and CSA recognized
  • 3300P motors are TENV,all others are TEFC
  • No dual mounting base holes on 33P type
Typical Applications:
Conveyors, mixers,packaging machinery and other applications requiring variable speed and constant torque.

Product Specifications

  • HORSEPOWER5
  • ENCLOSURETEFC
  • FRAME1810ATC
  • MOUNTINGRigid
  • NAMEPLATE RPM1750
  • MOTOR RPM 60Hz1750
  • SERVICE FACTORN/A
  • AMBIENT TEMP C40
  • WEIGHT160
  • RPM RANGE1701-1800
  • BALDOR TYPE3681P
  • BLOWER KITN/A
  • FILTER KITN/A
  • INSULATION CLASSF
  • FORM FACTORN/A
  • DE BEARING6206
  • FIELD VOLTAGE180
  • MECHANICAL SPECIFICATION NUMBER36LYP179
  • FRAME SIZE1810ATC
  • SPECIFICATION NUMBER36P179Z543
  • TACH MOUNTING KITN/A
  • ODE BEARING6206
  • RECOMMENDED SCR CONTROLN/A
  • BRANDBaldor-Reliance
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • BALDOR CATALOG NUMBERCDP3605
  • BASERG
  • ARMATURE VOLTAGE180
  • ELECTRICAL SPECIFICATION NUMBER36WGZ543
  • C-DIMENSION INCHES27.83
