Baldor-Reliance 3-Phase Motor, CEM4104T-5, 30 HP, 1765 RPM, 286TC Frame, C-Face Mount,TEFC,575 Volts

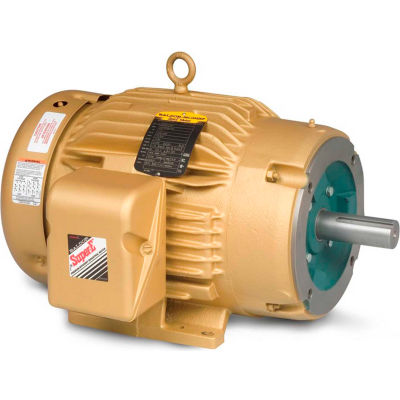

Actual product may differ from image shown

Baldor-Reliance 3-Phase Motor, CEM4104T-5, 30 HP, 1765 RPM, 286TC Frame, C-Face Mount,TEFC,575 Volts

Item #: WBB909316

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $3,599.00

$599.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $3,599.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance 3-Phase Motor, CEM4104T-5, 30 HP, 1765 RPM, 286TC Frame, C-Face Mount, TEFC, 575 Volts

Some general purpose applications require a motor that runs on 200 volt power. These 200 volt motors are stocked from 1 Hp to 50 Hp in TEFC, and 1 Hp to 100 Hp in ODP. Also available is an extensive line of 575 volt motors. The 575 volt motors are available in general purpose TEFC and ODP, Washdown, Severe Duty, IEEE-841, Explosion Proof, and Close-Coupled pump designs, in a variety of mounting configurations.

Features
  • Heavy gauge steel and cast iron frames
  • Ball bearings
  • ISR® (Inverter Spike Resistant®) copper windings
  • Low-loss electrical grade lamination steel
  • Three year warranty
Application(s)
  • Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.

Product Specifications

  • HORSEPOWER30
  • ENCLOSURETEFC
  • FRAME286TC
  • MOUNTINGC-Face Rigid
  • NAMEPLATE RPM1765
  • PHASE3
  • MOTOR RPM 60Hz1765
  • VOLTAGE575
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • RPM RANGE1701-1800
  • DESIGN CODEB
  • BEARING-DRIVE-END6311
  • BEARING-OPP-DRIVE-END6309
  • FL EFFICIENCY93.6
  • INSULATION CLASSF
  • FL AMPS28
  • KVA-CODEG
  • BRANDBaldor-Reliance
  • MANUFACTURER PART #CEM4104T-5
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR87
  • C-DIMENSION INCHES27.76
  • TYPE200-575V Motor
  • SPEC. NUMBER10C152Y670G1
