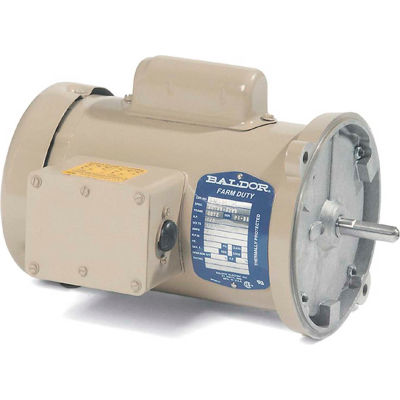

Baldor-Reliance Motor ANFL3507M, .75HP, 1725RPM, 1PH, 60HZ, 48YZ, 3428LC, TEFC

Actual product may differ from image shown

Baldor-Reliance Motor ANFL3507M, .75HP, 1725RPM, 1PH, 60HZ, 48YZ, 3428LC, TEFC

Item #: WBB388653

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$602.00 up to 16% OFF

Price: $506.00

$84.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $506.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .75HP,1725RPM,1PH,60HZ,48YZ,3428LC,TEFC

Features:
  • Mechanical protection of centrifugal switch to prevent damage to motor in case of overspeed
  • Manual reset thermal protection mounted in oversize conduit box
  • Farm Duty epoxy paint and thermal cover protect motor from harsh environments
  • Extended shaft (fan end) with wrench flats for manual jogging of auger. NEMA 56N flange connects to the drive/gear box assembly
Typical Applications:
Poultry feed auger drive systems.

Product Specifications

  • HORSEPOWER3/4
  • ENCLOSURETEFC
  • FRAME48YZ
  • BRANDBaldor-Reliance
  • MOUNTINGNo Mounting
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE1
  • VOLTAGE115/230
  • HERTZ60
  • SERVICE FACTOR1.25
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT35
  • RPM RANGE1701-1800
  • 208V AMPS5.4
  • KVA-CODEJ
  • is_motorYes
  • POWER-FACTOR80
  • FL EFFICIENCY74
  • SERIAL-NUMBER--
  • SPEC. NUMBER34H318X030G1
  • BEARING-DRIVE-END6203
  • DESIGN CODEN
  • OPPOSITE END BEARING SIZE6203
  • DOE-CODE--
  • FL AMPS8.2/4.1
  • MANUFACTURER PART #ANFL3507M
  • DRIVE END FLANGEOIL BURNER FLANGE
  • C-DIMENSION INCHES13.32
  • POLES4
  • INSULATION CLASSB
