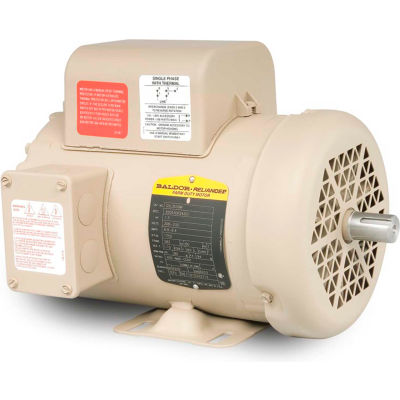

Baldor-Reliance Motor GSL3509M, 1.5HP, 1750RPM, 1PH, 60HZ, 56Z, 3523LC, TEFC, F

Actual product may differ from image shown

Baldor-Reliance Motor GSL3509M, 1.5HP, 1750RPM, 1PH, 60HZ, 56Z, 3523LC, TEFC, F

Item #: WBB389833

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$684.00 up to 20% OFF

Price: $547.00

$91.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $547.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1.5HP,1750RPM,1PH,60HZ,56Z,3523LC,TEFC,F

Features:
  • Heavy duty cast iron housings
  • Chill cast bronze gears
  • Precision ground hardened worm
  • Ball bearings on input shaft
  • Tapered roller bearings on output shaft
  • Industry-standard mounting dimensions
  • Pre-filled with food grade (H1) Klubersynth UH1-6-460 synthetic oil
  • Sealed housing provides maintenance-free lubed for life operation.
Typical Applications:
Wide variety of applications requiring slow speed and high torque, ideal for conveyors, material handling, textile machines, packaging machinery, etc.

Product Specifications

  • HORSEPOWER1 1/2
  • ENCLOSURETEFC
  • FRAME56Z
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1750
  • RPM1750
  • PHASE1
  • VOLTAGE208-230
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT42
  • RPM RANGE1701-1800
  • 208V AMPS--
  • KVA-CODEJ
  • is_motorYes
  • POWER-FACTOR94
  • FL EFFICIENCY80
  • SERIAL-NUMBER--
  • SPEC. NUMBER35G630P243G1
  • BEARING-DRIVE-END6205
  • DESIGN CODEL
  • OPPOSITE END BEARING SIZE6203
  • DOE-CODE--
  • FL AMPS6.9-6.4
  • MANUFACTURER PART #GSL3509M
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES12.29
  • POLES4
  • INSULATION CLASSF
