Leeson Motors - 1/2HP, 115/208-230V, 1725RPM, TEFC, Rigid C Mount, 1.0 S.F.

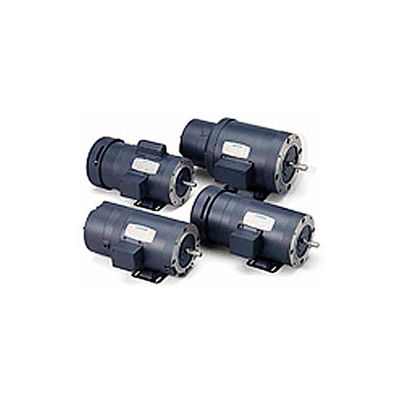

Actual product may differ from image shown

Leeson Motors - 1/2HP, 115/208-230V, 1725RPM, TEFC, Rigid C Mount, 1.0 S.F.

Item #: WBB216656

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,187.00 up to 48% OFF

Price: $623.00

$103.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $623.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Brake Motor: 1/2HP, 1725RPM, 56 Frame, Totally-Enclosed, Fan-Cooled (TEFC), 115/208-230V, 1PH, Continuous duty, No thermal protection, 1.0 Service Factor, Rigid C Mount.

Fail-safe positive, stop and hold brake motor. Brakes are spring set. Load is stopped automatically when power is turned off. Brake motors feature a power off manual release for convenience, and for use in case of a power failure. The manual release resets automatically. The standard brake is manufactured by Stearns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off, or to be actuated independent of power to the motor. Single phase brake coils are 115/230 VAC, 60 Hz.


Product Specifications

  • HORSEPOWER1/2
  • ENCLOSURETEFC
  • FRAME56
  • BRANDLeeson
  • MOUNTINGC-Face Rigid
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE1
  • VOLTAGE115/208-230
  • NAMEPLATE AMPS8.8/4.4
  • COMPATIBLE WITH/REPLACESBaldor KBL3409, Marathon D401
  • HERTZ60
  • SERVICE FACTOR1.0
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • CONSTRUCTIONRolled Steel
  • AMBIENT TEMP C40
  • SHAFT DIAMETER5/8
  • SHAFT LENGTH INCHES1-7/8
  • ROTATIONCCW
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT32
  • ULY
  • CSAY
  • LEESON MODEL NO.C6C17FK20KK
  • UPC69172001038
  • DUTYContinuous
  • MANUFACTURERS PART NUMBER111950.00
  • RPM RANGE1701-1800
  • FL EFFICIENCY66
  • DESIGNCapacitor Start Inductor Run
  • BEARING-DRIVE-END6203
