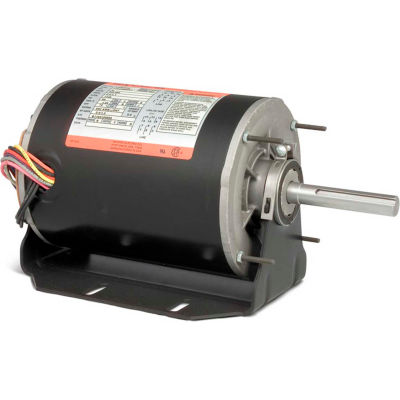

Baldor-Reliance Motor CHM365A, .5HP, 1140RPM, 3PH, 60HZ, 56Z, 1718M, TEAO, F1

Baldor-Reliance Motor CHM365A, .5HP, 1140RPM, 3PH, 60HZ, 56Z, 1718M, TEAO, F1

Item #: WBB387863

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $335.95

Save $16.80 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .5HP,1140RPM,3PH,60HZ,56Z,1718M,TEAO,F1

Features:
  • Automatic thermal overload
  • Ball bearings
  • Extended thru-bolts
  • Resilient cushion rings
  • Reversible rotation
  • Rugged steel frame
  • Suitable for mounting in any position
  • Terminal panel with quick connections on single phase
Typical Applications:
Air handling fans, Confinement houses, Exhaust fans, Unit heaters, and other applications having moderate starting loads

Product Specifications

  • HORSEPOWER1/2
  • ENCLOSURETEAO
  • FRAME56Z
  • BRANDBaldor-Reliance
  • MOUNTINGResilient Base
  • MOTOR RPM 60Hz1140
  • RPM1140
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.25
  • AMBIENT TEMP C60
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT25
  • RPM RANGE1101-1200
  • SERVICE-FACTOR-AMPS2.4/1.2
  • MANUFACTURER PART NUMBERCHM365A
  • THERMAL-SELECTN
  • 208V AMPS2.4
  • KVA-CODEJ
  • POWER-FACTOR--
  • FL EFFICIENCY72
  • SERIAL-NUMBER--
  • SPEC. NUMBER17K039W467
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERCHM365A
  • FL AMPS2.2/1.1
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES12.21
  • POLES6
  • INSULATION CLASSB
