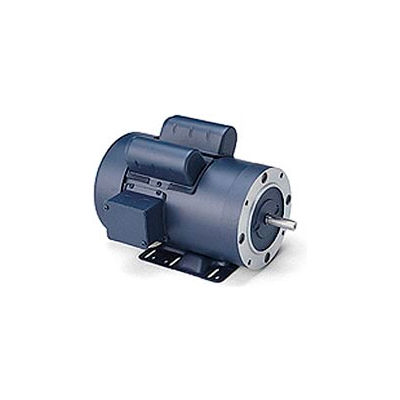

Leeson Motors - 3HP, 208-230V, 3450RPM, TEFC, Rigid C Mount, 1.0 S.F.

Leeson Motors - 3HP, 208-230V, 3450RPM, TEFC, Rigid C Mount, 1.0 S.F.

Item #: WBB217553

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,034.00 up to 48% OFF

Price: $536.00

$89.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $536.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Pressure Washer Motor: 3HP, 3450RPM, 56H Frame, Totally-Enclosed, Fan-Cooled (TEFC), 208-230V, 1PH, Continuous duty, Manual thermal protection, 1.0 Service Factor, Rigid C Mount.

Motors specially suited for hot or cold pressure washer applications and other single phase installations requiring minimum starting and running amperages. Capacitor start, capacitor run construction for reduced amperage. Double shield ball bearings prelubricated with Exxon POLYREX® EM lubricant, having operating temperature range of -20°F to +350°F and special formulation to provide extra long life and moisture resistance. Dynamically balanced rotor and shaft assembly. High efficiency reduced amperage energy saving designs. Stator impregnated with extra heavy varnish system. High temperature copper magnet wire for high overload capacity. Grounding provision in conduit box. Manual reset overload protector protects against automatic resets. High overload capacities provided by service factor.



Product Specifications

  • HORSEPOWER3
  • ENCLOSURETEFC
  • FRAME56H
  • BRANDLeeson
  • MOUNTINGC-Face Rigid
  • MOTOR RPM 60Hz3450
  • RPM3450
  • PHASE1
  • MATERIALRolled Steel
  • VOLTAGE208-230
  • NAMEPLATE AMPS14-13
  • COMPATIBLE WITH/REPLACESBaldor PCL3519M, Marathon K618
  • HERTZ60
  • SERVICE FACTOR1.0
  • THERMAL PROTECTIONManual
  • EFFICIENCY TYPEStandard
  • EFFICIENCY81.5
  • AMBIENT TEMP C40
  • SHAFT DIAMETER5/8
  • SHAFT LENGTH INCHES1-7/8
  • ROTATIONCCW
  • ENCLOSURE TYPETotally Enclosed
  • SHAFT END BEARING6203
  • WEIGHT49
  • ULY
  • CSAY
  • LEESON MODEL NO.P6K34FK17EE
  • UPC69172001442
  • DUTYContinuous
  • RPM RANGE3001-3600
  • is_motorYes
  • DESIGNCapacitor Start Capacitor Run
  • MANUFACTURER PART #115048.00
