Baldor-Reliance Motor ECP83768T-5, 5HP, 1165RPM, 3PH, 60HZ, L215T, TEFC, FOOT

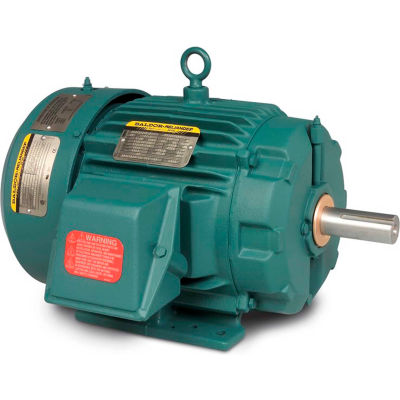

Actual product may differ from image shown

Baldor-Reliance Motor ECP83768T-5, 5HP, 1165RPM, 3PH, 60HZ, L215T, TEFC, FOOT

Item #: WBB390340

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,953.00 up to 20% OFF

Price: $1,560.00

$260.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,560.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 5HP,1165RPM,3PH,60HZ,L215T,TEFC,FOOT,

Features:
  • Built to 841XL design
  • Upgraded electrical and mechanical design with NEMA Premium® efficient winding
  • Inpro/Seal® VBX (thru 210 frame)
  • VBXX bearing isolators on fan and drive end shaft extensions
  • Epoxy paint provides IP56 enclosure
  • Stainless breather drains
  • Proprietary cast iron frames for reduced vibration and noise
  • Terminal lugs on motor leads
  • 5-year warranty
Typical Applications:
Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841-2001 TEFC motor standards for extreme severe duty service.

Product Specifications

  • HORSEPOWER5
  • ENCLOSURETEFC
  • FRAME215T
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1160
  • RPM1160
  • PHASE3
  • VOLTAGE575
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6206
  • RPM RANGE1101-1200
  • # OF ROTOR BARS27
  • is_motorYes
  • KVA-CODEJ
  • POWER-FACTOR73
  • FL EFFICIENCY89.5
  • MAX. KVAR1.9
  • TEMP. CODET3
  • GREASEPOLYREX EM
  • SERIAL-NUMBER--
  • SPEC. NUMBER07J415Y727G1
  • # OF STATOR SLOTS36
  • BEARING-DRIVE-END6307
  • DESIGN CODEB
  • DOE-CODE--
  • FL AMPS5.7
  • MAX. SPACE HEATER TEMP.N/A
  • MANUFACTURER PART #ECP83768T-5
  • SPACE-HEATER-AMPSN/A
  • WEIGHT LBS.203
  • SPACE-HEATER-VOLTSN/A
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES20.19
  • POLES6
  • INSULATION CLASSF
